Description
PRODUCT FUNCTIONS
- MIG/MAG Welding
- MMA Welding
- Slow Feeding
- Burn-back Time Adjustment
- Inching Function
- Adjustable Inductance
- Crater Function
- Automatic Voltage Compensation
- Thermal Protection
- Overloading Protection
- Low Voltage Protection
PRODUCT ACCESSORIES
- MIG Torch
- Earth Cable
- CO₂ Regulator
- External Wire Feeder
- Wire Feeder Type: 40KD/3M
- MIG Torch: 2.5M + AC36V
- Double Drive Roller
PRODUCT DESCRIPTION
The MIG-400 MIG/MAG/MMA Welding Machine 400A/3Ph features full-bridge IGBT inverter technology for stable, efficient, and reliable welding performance. Supporting MIG/MAG and MMA welding, it offers smooth wire feeding, reduced spatter, adjustable inductance, automatic voltage compensation, and multiple protection functions. Ideal for industrial fabrication, construction, maintenance, and demanding welding applications.

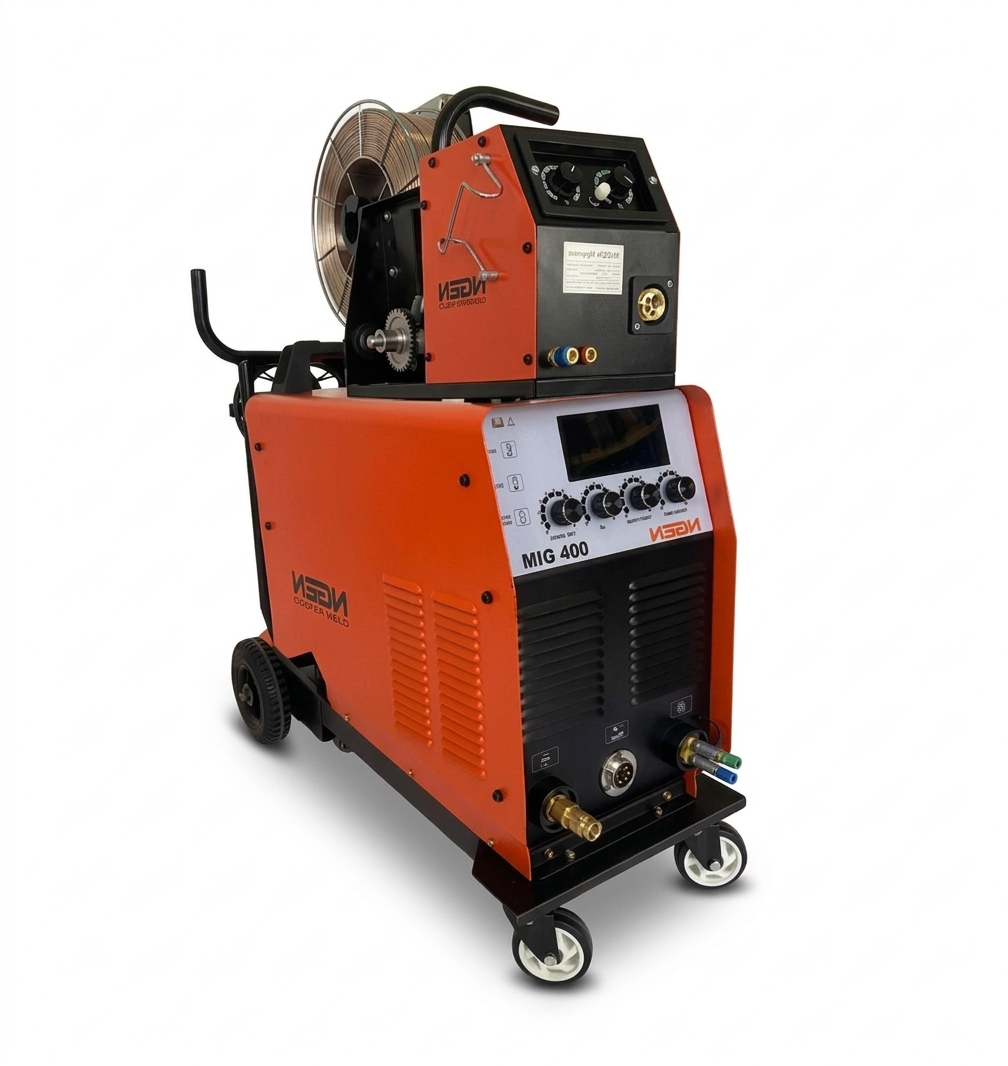

NGEN-MIG-400 WITH TROLLEY
Product Features
Full-bridge IGBT inverter technology delivers reliable and energy-efficient performance, while MIG/MAG and MMA welding modes provide versatile operation. The machine features stable arc ignition, post-welding wire-end droplet elimination, unique welding dynamics control, double-drive wire feeding, reduced spatter, fine weld beads, 60% duty cycle, and over-current, overheat, overload, and low-voltage protection.
Enter your email below to instantly receive the official product data sheet. A copy will be sent directly to your inbox, and our team will also be notified of your request.
PRODUCT FUNCTIONS
- MIG/MAG Welding
- MMA Welding
- Slow Feeding
- Burn-back Time Adjustment
- Inching Function
- Adjustable Inductance
- Crater Function
- Automatic Voltage Compensation
- Thermal Protection
- Overloading Protection
- Low Voltage Protection
PRODUCT ACCESSORIES
- MIG Torch
- Earth Cable
- CO₂ Regulator
- External Wire Feeder
- Wire Feeder Type: 40KD/3M
- MIG Torch: 2.5M + AC36V
- Double Drive Roller
PRODUCT DESCRIPTION
The MIG-400 MIG/MAG/MMA Welding Machine 400A/3Ph features full-bridge IGBT inverter technology for stable, efficient, and reliable welding performance. Supporting MIG/MAG and MMA welding, it offers smooth wire feeding, reduced spatter, adjustable inductance, automatic voltage compensation, and multiple protection functions. Ideal for industrial fabrication, construction, maintenance, and demanding welding applications.
TeChniCal Parameters and functions
Additional information
| Model | MIG-400 |
|---|---|
| Input Voltage (V) 3 Phase | AC380V ±15% |
| Input Frequency (Hz) | 50/60 |
| Input Power (KVA) | 24.7 |
| Max Input Current (A) | 37.5 |
| Max Effective Input Current (A) | 29 |
| No-load Voltage (V) | 67 |
| Output Voltage (V) | 39 |
| Duty Cycle (%) | 60 |
| Efficiency (%) | 85 |
| Insulation Grade | F |
| Housing Protective Grade | IP21S |
| Wire Feeder | External |
| Wire Spool Diameter (mm) | 270 / 15 Kgs |
| Wire Diameter (mm) | 0.8 / 1.0 / 1.2 / 1.6 |
| Plate Thickness (mm) | >0.6 |
| Dimensions (L × W × H) (mm) | 580 × 280 × 530 |
| Carton CBM (m³) | 0.2135 |
| Carton CBM Including Wire Feeder (m³) | 0.055 |
