Description
PRODUCT FUNCTIONS
- Excellent arcing and stable arc
- Stably start arcing at low current 10A
- No Arc Blow
PRODUCT ACCESSORIES
- TIG Torch 4mtr length
- Holder & Cable Clamp 3mtr length
PRODUCT DISCRIPTION
- DC manual welding, AC/DC/pulse ITG function, one machine for multiple uses
- The multifunctional welding machine has both 2T/4T functions for efficient welding
- The pulse frequency, peak value, base value, and other parameters can be adjusted to meet different welding
- The gas delay and pulse width cleaning can be adjusted to ensure that the weld bead does not turn black and the welding is more secure
- The output waveform for communication includes square wave, sine wave, and triangular wave modes, and supports combined output modes
- Comprehensive protection against overcurrent and overheating
- Strong ability to withstand power grid fluctuations and work normally even with unstable voltage
- Weldable carbon steel, ordinary low-alloy steel, stainless steel, aluminum and aluminum alloy products

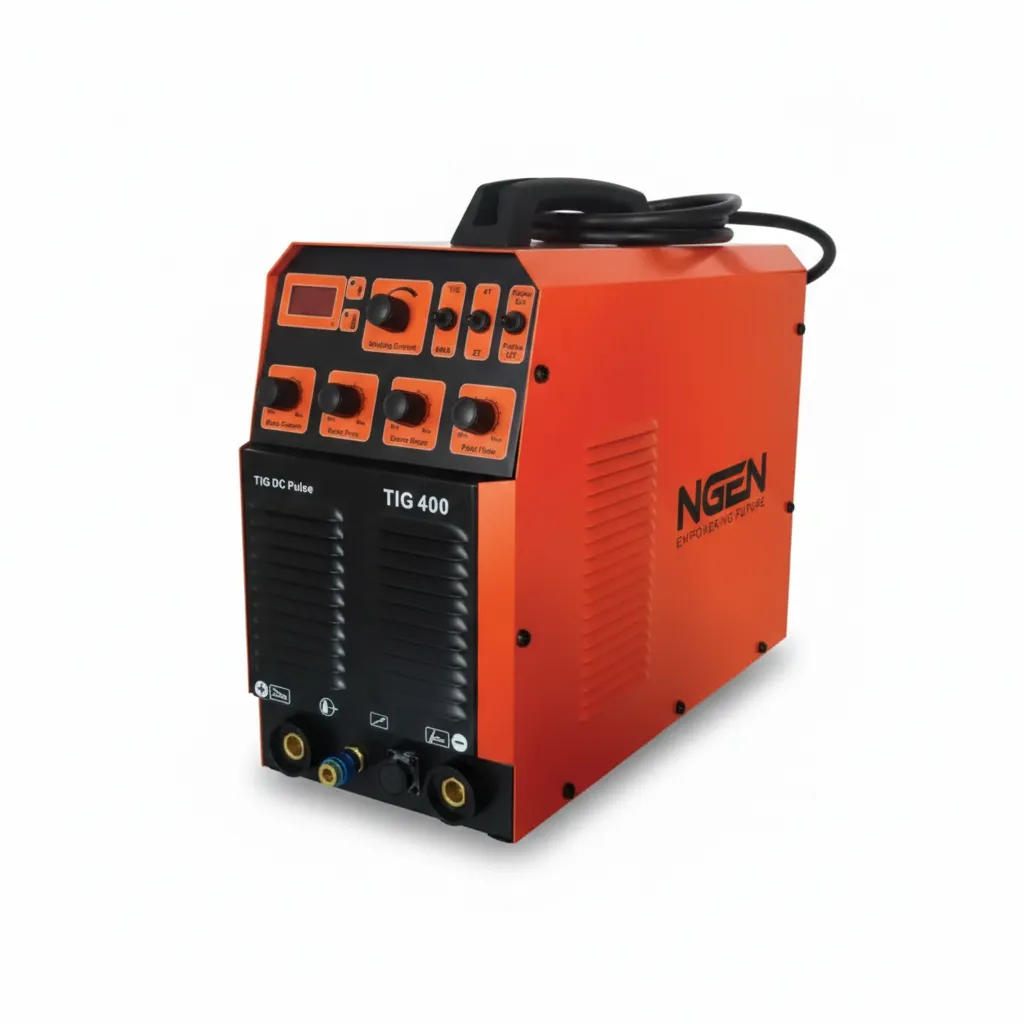

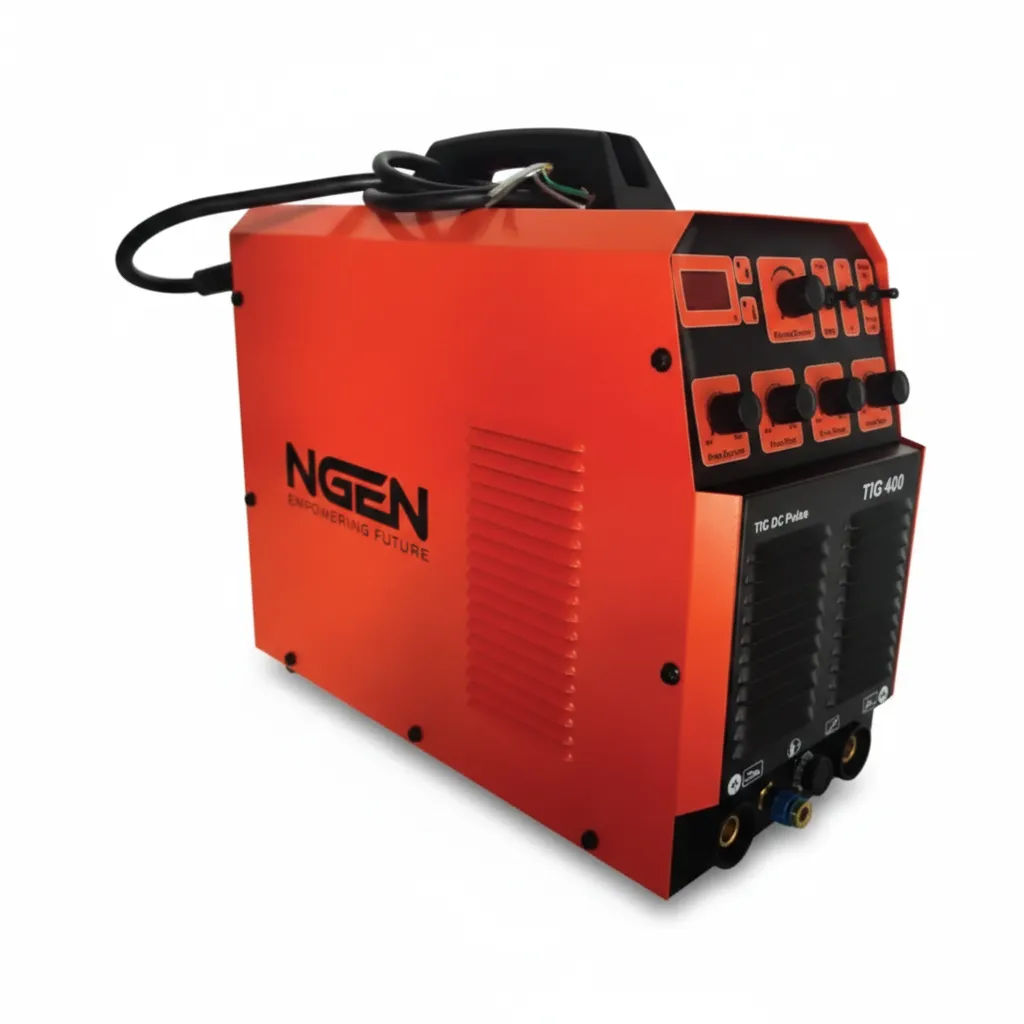

NGEN-TIG400 (P)
Product Features
- High speed fan cooling, low temperature rise of power components
- LCD screen display, multiple adjustable parameters
- Strong resistance to power grid fluctuations, stable welding even when the power grid is unstable
- 32-bit MCU control, fast response speed
Enter your email below to instantly receive the official product data sheet. A copy will be sent directly to your inbox, and our team will also be notified of your request.
PRODUCT FUNCTIONS
- Excellent arcing and stable arc
- Stably start arcing at low current 10A
- No Arc Blow
PRODUCT ACCESSORIES
- TIG Torch 4mtr length
- Holder & Cable Clamp 3mtr length
PRODUCT DISCRIPTION
- DC manual welding, AC/DC/pulse ITG function, one machine for multiple uses
- The multifunctional welding machine has both 2T/4T functions for efficient welding
- The pulse frequency, peak value, base value, and other parameters can be adjusted to meet different welding
- The gas delay and pulse width cleaning can be adjusted to ensure that the weld bead does not turn black and the welding is more secure
- The output waveform for communication includes square wave, sine wave, and triangular wave modes, and supports combined output modes
- Comprehensive protection against overcurrent and overheating
- Strong ability to withstand power grid fluctuations and work normally even with unstable voltage
- Weldable carbon steel, ordinary low-alloy steel, stainless steel, aluminum and aluminum alloy products
TeChniCal Parameters and functions
Additional information
| Model | NGEN-TIG400 (P) |
|---|---|
| Voltage(V) | 380V&3P220V |
| Frequency(Hz) | 50-60 |
| Input Power(KVA) | 17 |
| No-load Volt(V) | 56 |
| TIG Current Range(A) | 10-400 |
| MMA Current Range(A) | 20-300 |
| Duty Cycle | 60% |
| MMA Welding Rod(mm) | ₵ 1.6-5.0 |
| Power Factor | 0.73 |
| Efficiency(%) | 85 |
| Insulation Grade | F |
| Protection Grade | IP21S |
| Weight(Kg) | 36 |
| (L*W*H)(mm) | 590*280*556 |
| Carton CBM(m³) | 0.17 |
| Pre Gas | ✔ |
| Post Gas | ✔ |
| Current Up Slope | ✔ |
| Current Down Slope | ✔ |
| Pulse Frequency Adjustable | ✔ |
| Clean Width Adjustable | ✔ |
| Pulse Width Adjustable | ✔ |
| 2T/4T | ✔ |
| Automatic Voltage Compensation | ✔ |
| Over Heat Protection | ✔ |
| Under Voltage Adjustable | ✔ |
| TIG TORCH | WP–18–4M |
