Description
PRODUCT FUNCTIONS
- 3000W laser output power for high-efficiency industrial surface cleaning.
- Uses 1064nm laser technology for precise and controlled cleaning.
- Effectively removes rust, paint, coatings, grease, resin, stains, dirt, and plating.
- Supports cleaning of curved and irregular surfaces with automatic focusing.
- Adjustable light spot range from 0–300mm.
- Cleaning width available up to 300mm, depending on the selected focus lens.
- Water-cooled system with a custom industrial double-temperature, double-control chiller.
- Provides 2% output power stability for consistent cleaning performance.
- Chemical-free and media-free cleaning process helps reduce consumables and production costs.
- Designed to minimize damage to the underlying part or substrate when properly operated.
- Suitable for industrial cleaning, metal surface preparation, rust removal, coating removal, and tank cleaning applications.

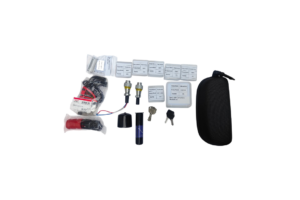

PRODUCT ACCESSORIES
- Laser Cleaning Torch – 10m
- Protective Glass
- Protection Mirror D30T5
- SUP22C Cleaning Head
- QBH Fiber Optic Interface
PRODUCT DESCRIPTION

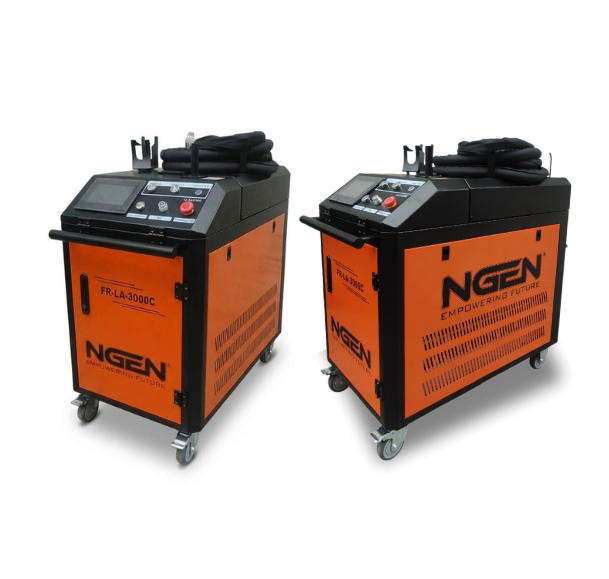

The FR-LA-3000C Laser Cleaning Machine is a 3000W industrial laser cleaning system engineered for high-performance surface preparation and contaminant removal. Featuring a 1064nm laser wavelength, water cooling, adjustable scan width, and automatic focusing capability, it efficiently removes rust, paint, grease, resin, dirt, coatings, stains, and plating from metal surfaces. With a customizable 20m fiber length, up to 300mm cleaning width, and industrial-grade cooling system, the FR-LA-3000C is suitable for steel fabrication, stainless steel tank cleaning, manufacturing, maintenance, automotive, shipbuilding, and heavy industrial applications.
NGEN-FR-LA-3000C
Product Features
The FR-LA-3000C 3000W Laser Cleaning Machine is a high-power industrial laser cleaning system designed for efficient and precise surface cleaning. Using a 1064nm laser wavelength, it removes rust, paint, coatings, grease, resin, stains, dirt, and plating without the need for chemicals, abrasive media, or water. Its automated focusing capability and adjustable cleaning width make it suitable for flat and curved surfaces across industrial applications.
Enter your email below to instantly receive the official product data sheet. A copy will be sent directly to your inbox, and our team will also be notified of your request.
PRODUCT FUNCTIONS
- 3000W laser output power for high-efficiency industrial surface cleaning.
- Uses 1064nm laser technology for precise and controlled cleaning.
- Effectively removes rust, paint, coatings, grease, resin, stains, dirt, and plating.
- Supports cleaning of curved and irregular surfaces with automatic focusing.
- Adjustable light spot range from 0–300mm.
- Cleaning width available up to 300mm, depending on the selected focus lens.
- Water-cooled system with a custom industrial double-temperature, double-control chiller.
- Provides 2% output power stability for consistent cleaning performance.
- Chemical-free and media-free cleaning process helps reduce consumables and production costs.
- Designed to minimize damage to the underlying part or substrate when properly operated.
- Suitable for industrial cleaning, metal surface preparation, rust removal, coating removal, and tank cleaning applications.
PRODUCT ACCESSORIES
- Laser Cleaning Torch – 10m
- Protective Glass
- Protection Mirror D30T5
- SUP22C Cleaning Head
- QBH Fiber Optic Interface
PRODUCT DESCRIPTION
The FR-LA-3000C Laser Cleaning Machine is a 3000W industrial laser cleaning system engineered for high-performance surface preparation and contaminant removal. Featuring a 1064nm laser wavelength, water cooling, adjustable scan width, and automatic focusing capability, it efficiently removes rust, paint, grease, resin, dirt, coatings, stains, and plating from metal surfaces. With a customizable 20m fiber length, up to 300mm cleaning width, and industrial-grade cooling system, the FR-LA-3000C is suitable for steel fabrication, stainless steel tank cleaning, manufacturing, maintenance, automotive, shipbuilding, and heavy industrial applications.
TeChniCal Parameters and functions
Additional information
| Model | FR-LA-3000C |
|---|---|
| Power Supply Voltage | 3-380V, 50/60Hz |
| Rate Input Capacity (KVA) | 13 |
| Rate Input Current | 20 |
| Cooling | Water |
| Output Power Stability | 2% |
| Collimating Focal Length | D16 F60mm |
| Light Spot Adjustment Range | 0-300mm |
| Laser wave length | 1064nm + 10 |
| Laser output power | 3000W |
| Power | ≤ 13KW |
| Refrigerating system | Custom-made industrial double |
| Fiber length | 20m customizable |
| Protection mirror | D30T5 |
| Maximum air pressure support | 15Bar |
| Focus lens | D203.5F400 |
| Scan Width-Wash | F400-0~150mm |
| Cleaning head | SUP22C |
| Fiber optic interface | QBH |
| Overall size | 1000*600*1260 |
| Overall weight | 180kg |
