Description
PRODUCT FUNCTIONS
- Post-welding wire-end droplet elimination function
- Unique welding dynamics control circuit
- A prompt feedback circuit that provides for a stable arc can keep the electric arc adjusted responsively as wire stick-out varies
PRODUCT ACCESSORIES
- Torch 3mtr length
- CO2 Regulator
- Earth Clamp & Holder
- Closed Wire Feeder
- Water Tank & Trolley
PRODUCT DESCRIPTION
- This series of welding machines has MIG/MAG/MMA, it is multifunctional. It adopts IGBT high-frequency inverter technology and advanced PWM control mode, with fast dynamic response, reliable quality and stable performance. Output current self-adaptation within 20mm of wire extension, suitable for all-position welding, high efficiency and energy saving, high load continuity. Droplet transfer waveform control, stable arc, less spatter, good weld shape, arc ignition and burn back time circuit to ensure the success rate of arc ignition.

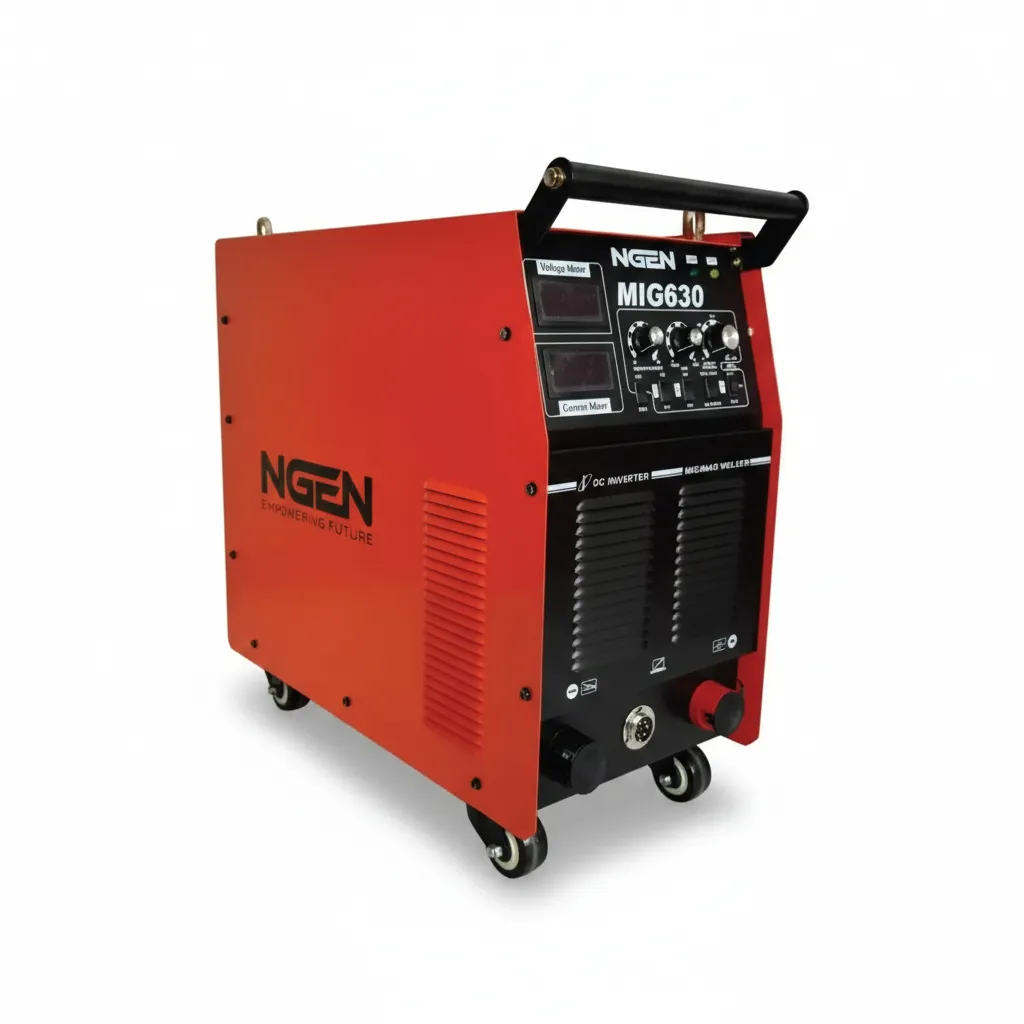

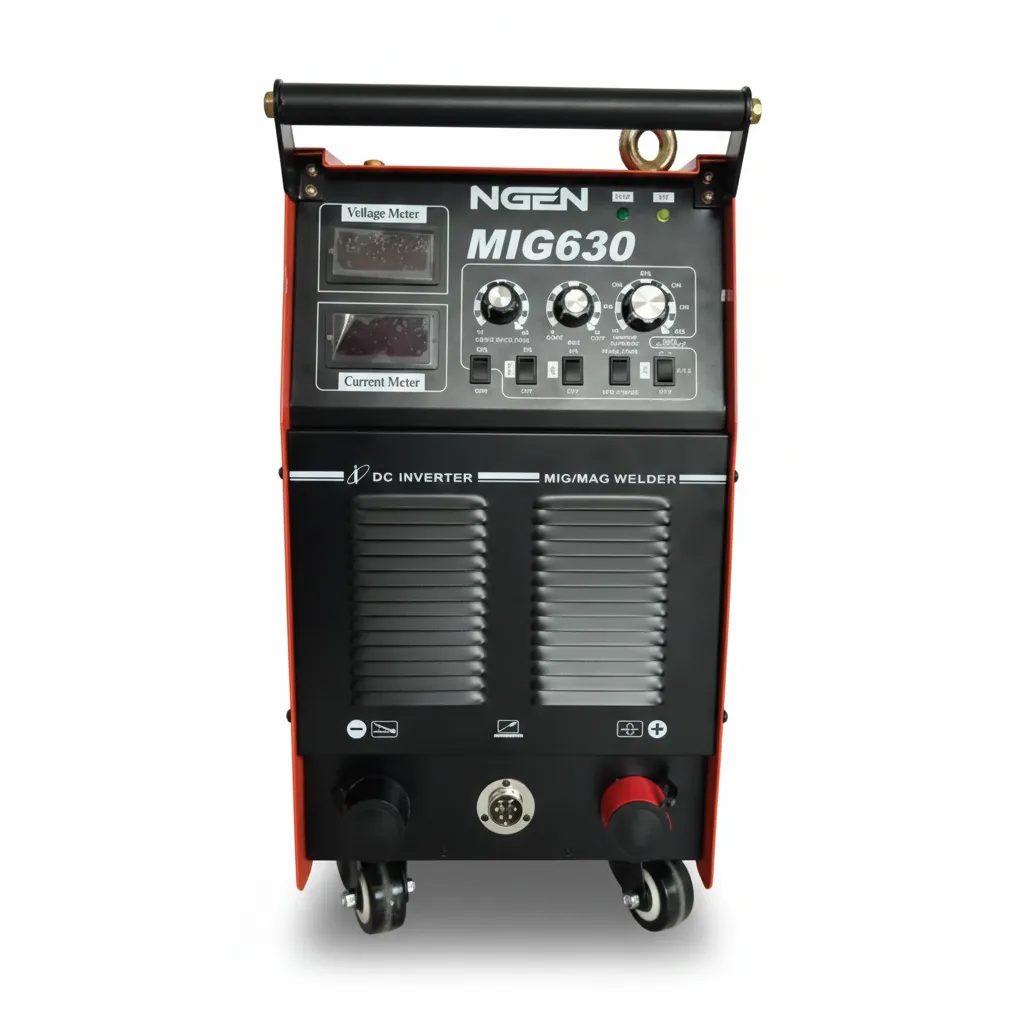

NGEN-MIG630 W/T
Product Features
- Full bridge IGBT inverter technology, high reliability and less energy consumption, over-heat and over-current protection. MIG and MMA combination enables multiple functions.
- Post-welding wire-end droplet elimination function, high no-load, slow wire feeding, high arc ignition success rate.
- Unique welding dynamics control circuit, double-drive wire feeding configuration to ensure stable arc, less spatter, fine welding bead and high welding efficiency.
- A prompt feedback circuit that provides for a stable arc can keep the electric arc adjusted responsively as wire stick-out varies. High duty cycle can withstand long-time, high-load welding.
Enter your email below to instantly receive the official product data sheet. A copy will be sent directly to your inbox, and our team will also be notified of your request.
PRODUCT FUNCTIONS
- Post-welding wire-end droplet elimination function
- Unique welding dynamics control circuit
- A prompt feedback circuit that provides for a stable arc can keep the electric arc adjusted responsively as wire stick-out varies
PRODUCT ACCESSORIES
- Torch 3mtr length
- CO2 Regulator
- Earth Clamp & Holder
- Closed Wire Feeder
- Water Tank & Trolley
PRODUCT DESCRIPTION
- This series of welding machines has MIG/MAG/MMA, it is multifunctional. It adopts IGBT high-frequency inverter technology and advanced PWM control mode, with fast dynamic response, reliable quality and stable performance. Output current self-adaptation within 20mm of wire extension, suitable for all-position welding, high efficiency and energy saving, high load continuity. Droplet transfer waveform control, stable arc, less spatter, good weld shape, arc ignition and burn back time circuit to ensure the success rate of arc ignition.
TeChniCal Parameters and functions
Additional information
| Model | MIG630 W/T |
|---|---|
| Input Voltage(V) | 3 Phase AC380V±15% |
| Input Frequency(Hz) | 50-60 |
| Input Power(KVA) | 33.4 |
| Max Input Current(A) | 50.7 |
| Max Effective Input Current(A) | 45.4 |
| No-Load Voltage (V) | 76 |
| Output Current(A) | 50-600 |
| Output Voltage(V) | 44 |
| Duty Cycle(%) | 80 |
| Efficiency(%) | 85 |
| Power Factor | 0.93 |
| Insulation Grade | F |
| Housing Protective Grade | IP21S |
| Wire Feeder | External |
| Wire Spool Dia.(mm) | 270/15KGS |
| Wire Dia.(mm) | 0.8/1.0/1.2/1.6 |
| Plate Thickness(mm) | >0.6 |
| Dimensions(L*W*H)(mm) | 650*310*560 |
| Carton CBM(m³) (Including wire feeder 0.055m³) | 0.265 |
| MIG/MAG | ✔ |
| MMA | ✔ |
| Slow-Feeding | ✔ |
| Burn Back Time | ✔ |
| Inching | ✔ |
| Inductance Adjustable | ✔ |
| Crater | ✔ |
| Automatic Voltage Compensation | ✔ |
| Thermal Protection | ✔ |
| Overloading Protection | ✔ |
| Low Voltage Protection | ✔ |
| MIG Torch | 40KD/3M |
| Earth Cable+Co2 Regulator | 2.5M+AC36V |
| Wire Feeder Type | Double Drive Roller |
