PRODUCT FUNCTIONS

• Advanced Quasi-Continuous Wave (QCW) fiber laser technology for precision spot welding.
• Compact and lightweight portable design for flexible operation.
• Supports up to 19 customizable welding program libraries.
• Laser power adjustable from 10% to 100%.
• Adjustable pulse frequency and pulse duration for precise energy control.
• Modulation frequency adjustable from 1–20,000 Hz.
• Stepless duty cycle adjustment from 1% to 100%.
• Adjustable protective gas pre-flow and post-flow timing.
• Integrated protective gas control with manual air valve operation.
• Optical safety shutter interlock function.
• AC 220V, 50Hz input power supply.
• Equipped with D80 fiber optic interface.
• Compact machine dimensions of 374.5 × 191 × 330 mm.
• Suitable for precision welding in complex and space-restricted applications.
• Designed for applications including thin metal sheets, lighting products, advertising signs, and small-scale manufacturing.

PRODUCT ACCESSORIES

• QCW Portable Spot Welder – 1 pc
• Power Cable – 1 pc
• Foot Pedal – 1 pc
• Welder Gun Stand – 1 pc
• Inner Corner Welding Nozzle – 1 pc
• Outer Corner Welding Nozzle – 1 pc
• Cutting Nozzle – Optional
• D80 Fiber Optic Dust Cap – 1 pc
• Laser Safety Goggles – 1 pc
• Protective Lens – 5 pcs
• Export Wooden Case – 1 pc
• Foam Insert

PRODUCT DESCRIPTION

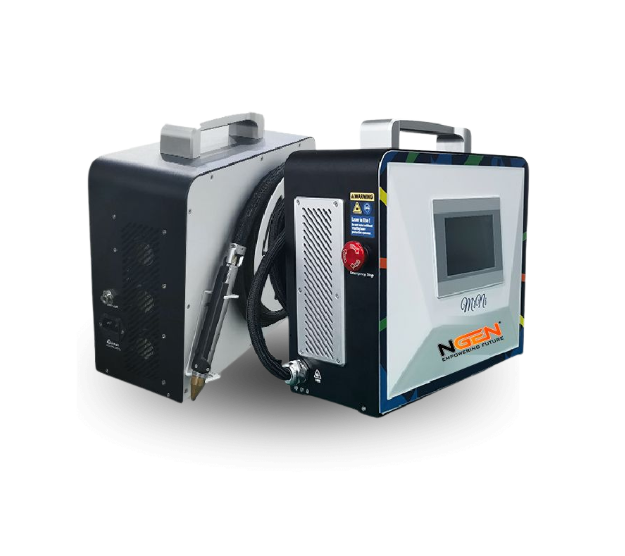

The NGEN S1 QCW Spot Welding Machine is a compact portable QCW fiber laser spot welder engineered for high-precision metal welding. With 10–100% adjustable laser power, 1–20,000 Hz modulation frequency, 1–100% duty cycle control, programmable welding parameters, and up to 19 welding programs, it provides precise process control for different welding requirements. Its integrated design and D80 fiber optic interface make it suitable for thin-sheet metal welding, advertising sign fabrication, lighting assembly, precision metal fabrication, DIY manufacturing, and other manual welding applications. The machine includes essential welding nozzles, protective lenses, safety goggles, foot pedal, gun stand, and protective carrying case for convenient professional operation.
