Description
PRODUCT FUNCTIONS
- MZ welding machine is a high-power welding power source for heavy industry.
- Suitable for welding thick steel plates in the shipbuilding industry, steel structures and large pressure vessels
PRODUCT ACCESSORIES
- Power Source
- Welding Carriage
- Welding cable 15mtr
- Earthing Cable 3mtr
PRODUCT DESCRIPTION
Submerged Arc Welding (SAW) is a joining process that involves the formation of an electric arc between a continuously fed electrode and the workpiece to be welded. A blanket of powdered flux surrounds and covers the arc and, when molten, provides electrical conduction between the metal to be joined and the electrode. It also generates a protective gas shield and a slag, all of which protect the weld zone.

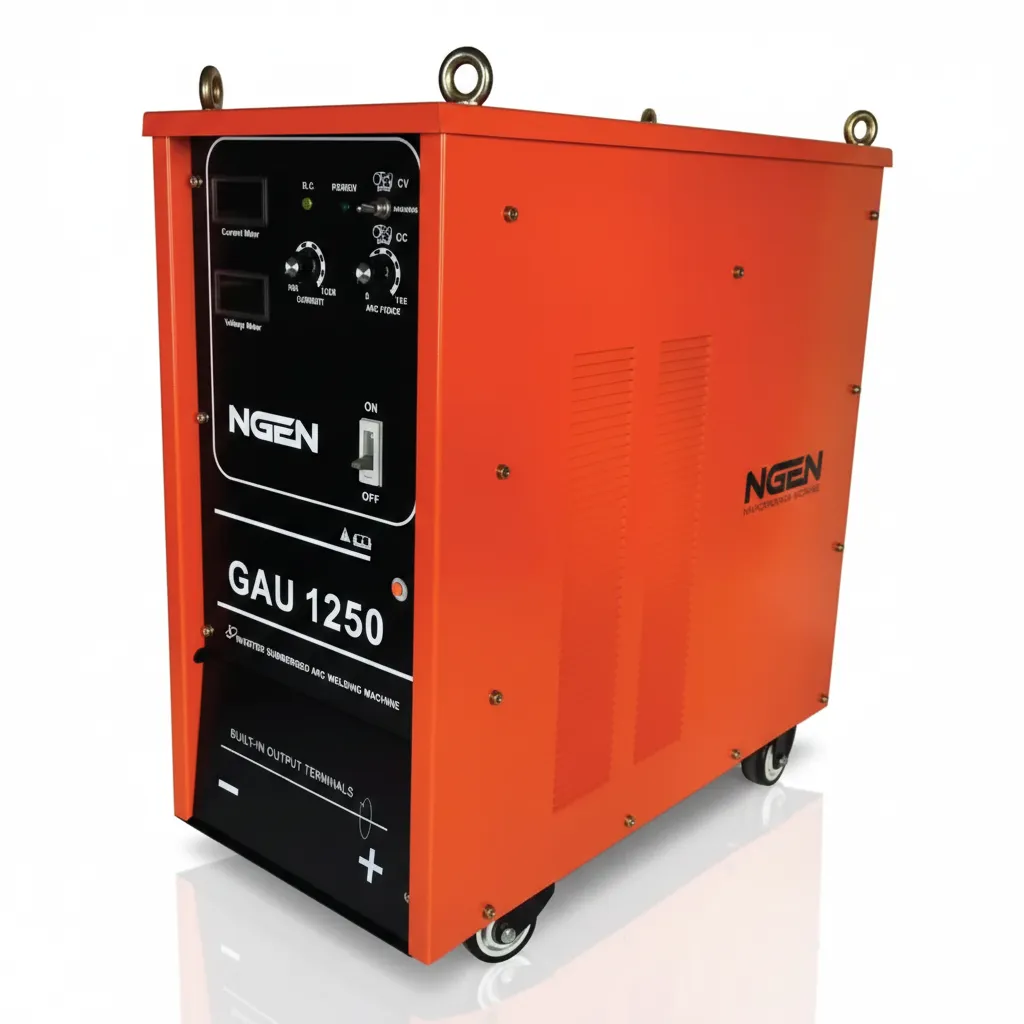

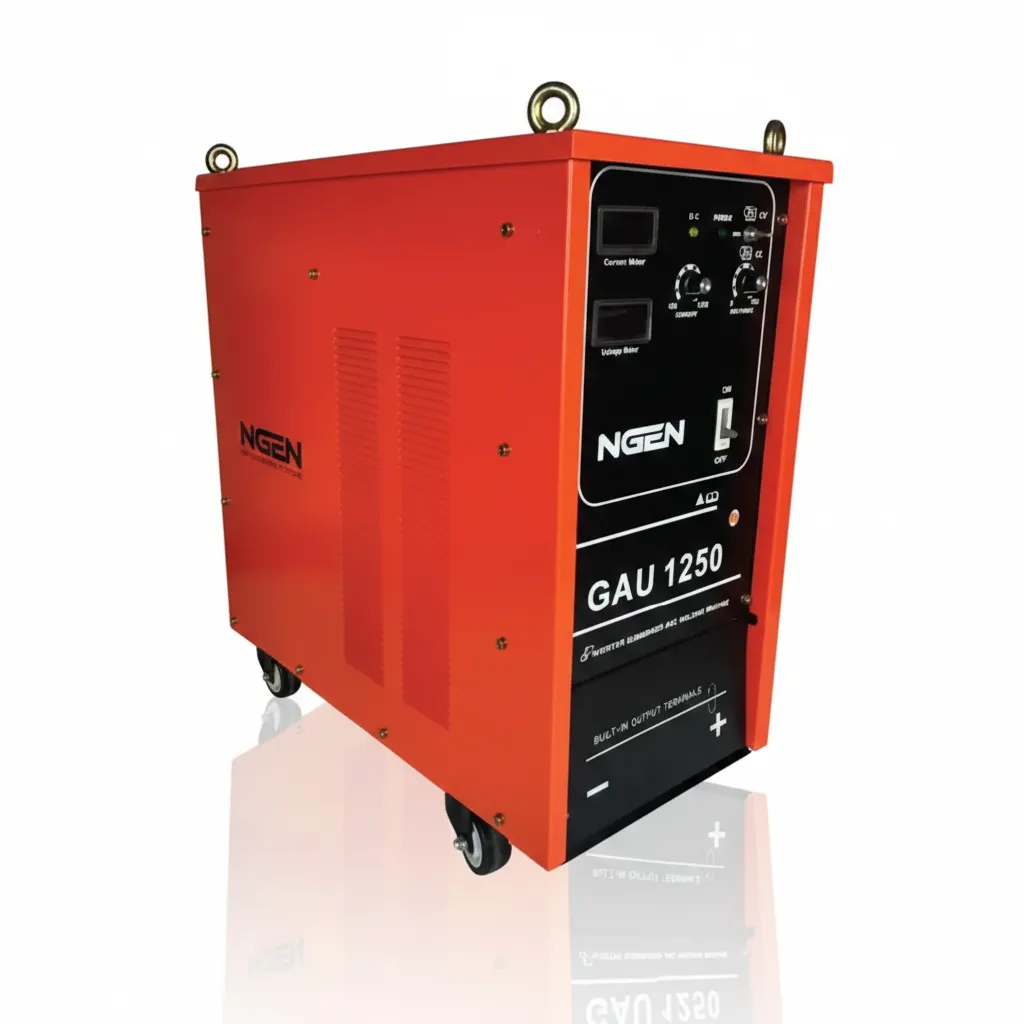

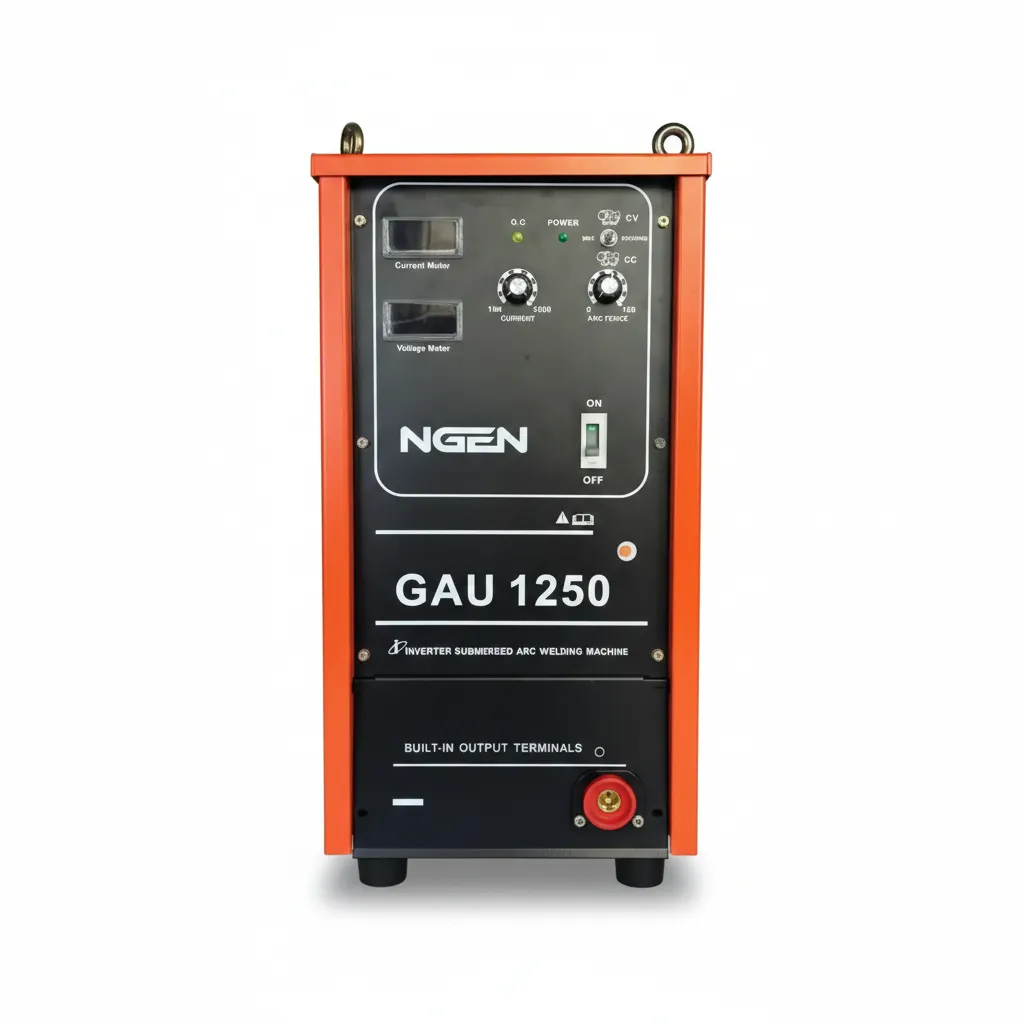

NGEN-GAU1250
PRODUCT FEATURES
- Strong ability to resist power grid fluctuations. The welding machine can work normally when the grid power is 320V~480V.
- 1000A/44V, 100% duty cycle. Max short-circuit current is 1500A.
- Multiple output modes, suitable for MMA/arc gouging, CC SAW/CV SAW.
- Imported top-brand power devices (INFINEON) ensure high reliability.
- Multiple protections including over-current, over-heat, phase loss, overvoltage and undervoltage protections.
- Professional 3-proofing designs ensure proper operation in extremely harsh environments.
PRODUCT FUNCTIONS
- MZ welding machine is a high-power welding power source for heavy industry.
- Suitable for welding thick steel plates in the shipbuilding industry, steel structures and large pressure vessels
PRODUCT ACCESSORIES
- Power Source
- Welding Carriage
- Welding cable 15mtr
- Earthing Cable 3mtr
PRODUCT DESCRIPTION
Submerged Arc Welding (SAW) is a joining process that involves the formation of an electric arc between a continuously fed electrode and the workpiece to be welded. A blanket of powdered flux surrounds and covers the arc and, when molten, provides electrical conduction between the metal to be joined and the electrode. It also generates a protective gas shield and a slag, all of which protect the weld zone.
TeChniCal Parameters and functions
Additional information
| Model | GAU1250 |
|---|---|
| Input Voltage(V) | 3 Phase AC380V±15% |
| Input Frequency(Hz) | 50-60 |
| Rated Input Power(KVA) | 70 |
| Rated Max Input Current(A) | 81 |
| Max Effextive Input Current(A) | 90 |
| No-Load Voltage(V) | 90 |
| Output Current(A) | 100-1250 |
| Output Voltage(V) | 44 |
| Duty Cycle(%) | 60 |
| Efficiency(%) | 85 |
| Power Factor | 0.93 |
| Insulation Grade | H |
| Housing Protective Grade | IP21S |
| Wire Diameter(mm) | 2.0/3.2/4.0/5.0 |
| (L*W*H)(mm) | 760*380*820 |
| MZ Machine Carton CBM(m³) | 0.298 |
| MZ Trolley Machine(m³) | 0.443 |
| SAW | ✔ |
| MMA | ✔ |
| Carbon Arc Gaughing | ✔ |
| CC Mode | ✔ |
| CV Mode | ✔ |
| Automativ Voltage Compensation | ✔ |
| Thermal Protection | ✔ |
| Over Loading Protection | ✔ |
| Low Voltage Protection | ✔ |
| Earth Cable | 70mm2/5m/2 sets |
| Control Cable | 14 Pins/ 10m |
| Track | 1m / 2Pieces |
