Description
PRODUCT FUNCTIONS
- Independent adjustment of welding current, arc initiation current, and thrust current.
- Low voltage anti-electric shock VRD function.
- Built-in anti-sticking function.
- Weldable carbon steel, ordinary low-alloy steel, and stainless steel.
- Comprehensive protection against overcurrent and overheating.
PRODUCT ACCESSORIES
- Earthing Clamp 2mtr & Earthing Holder 3mtr.

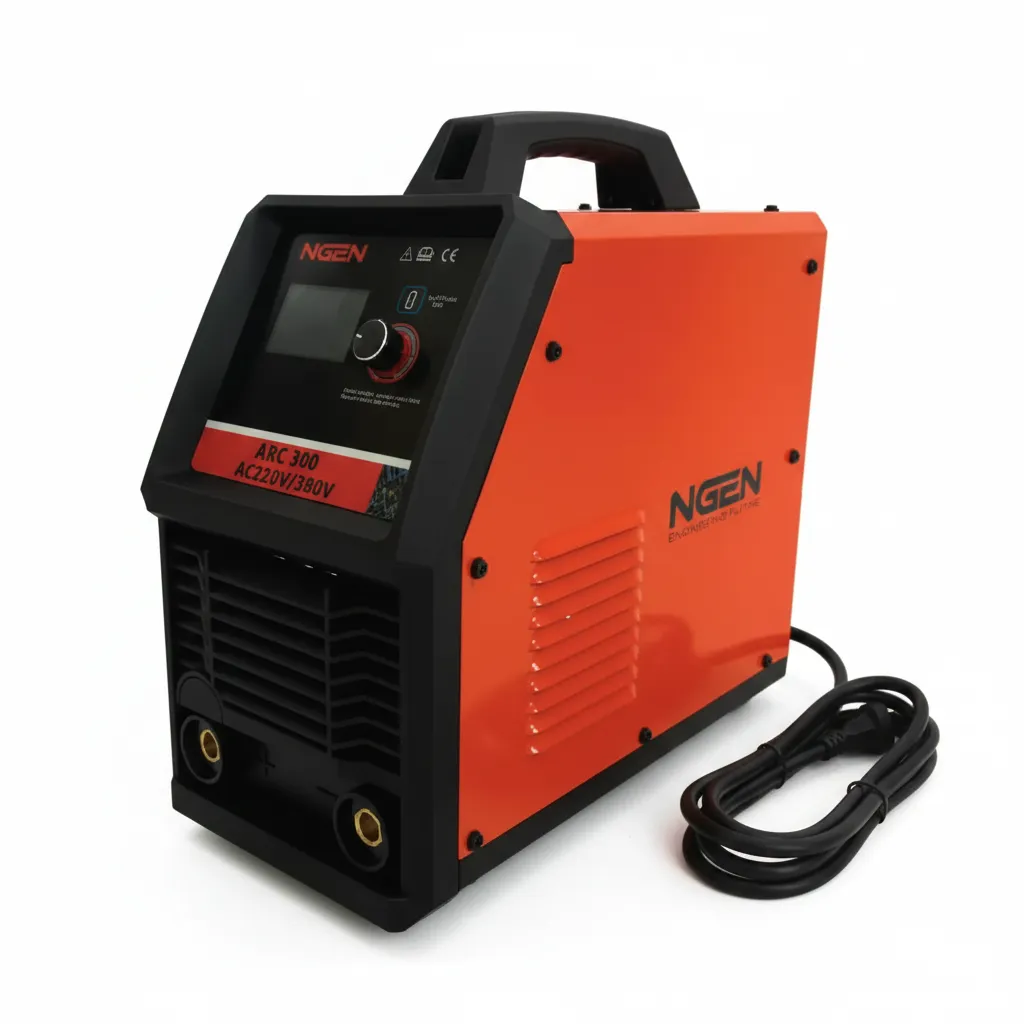

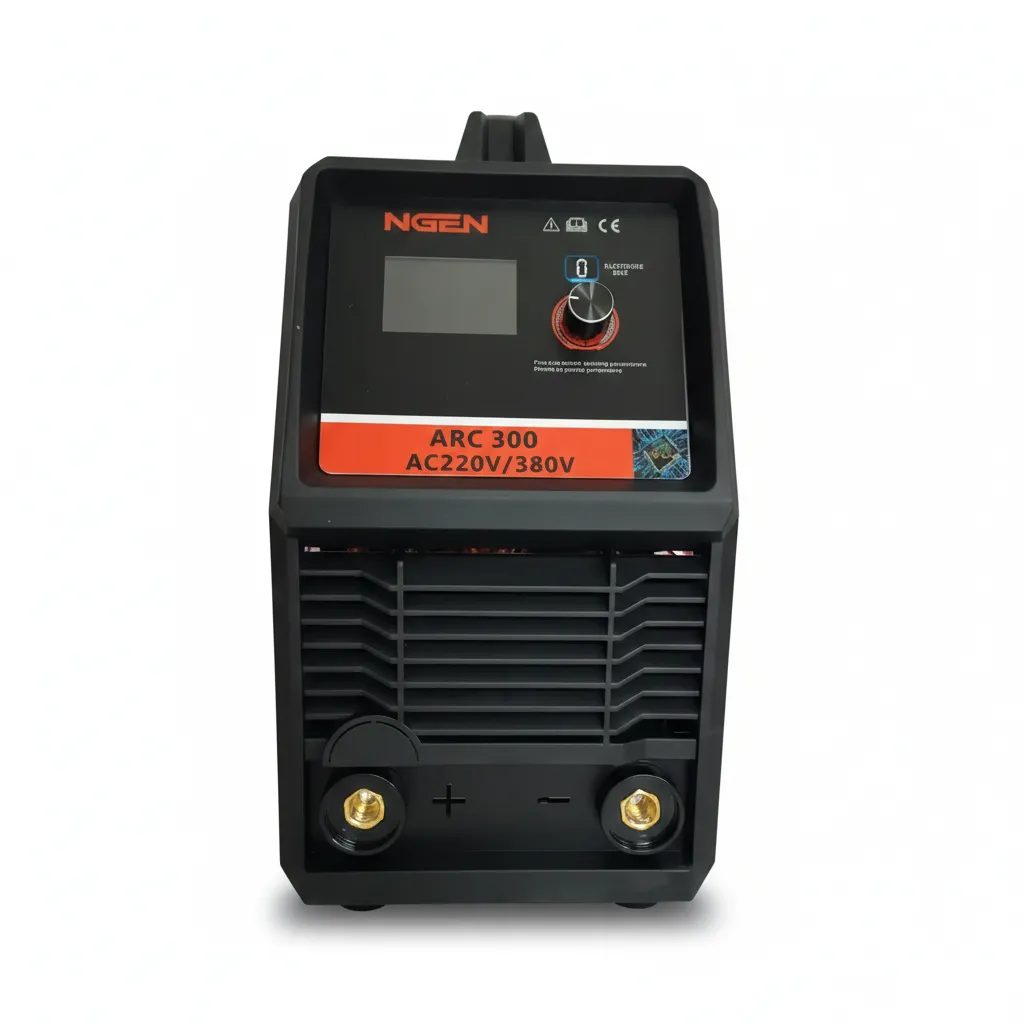

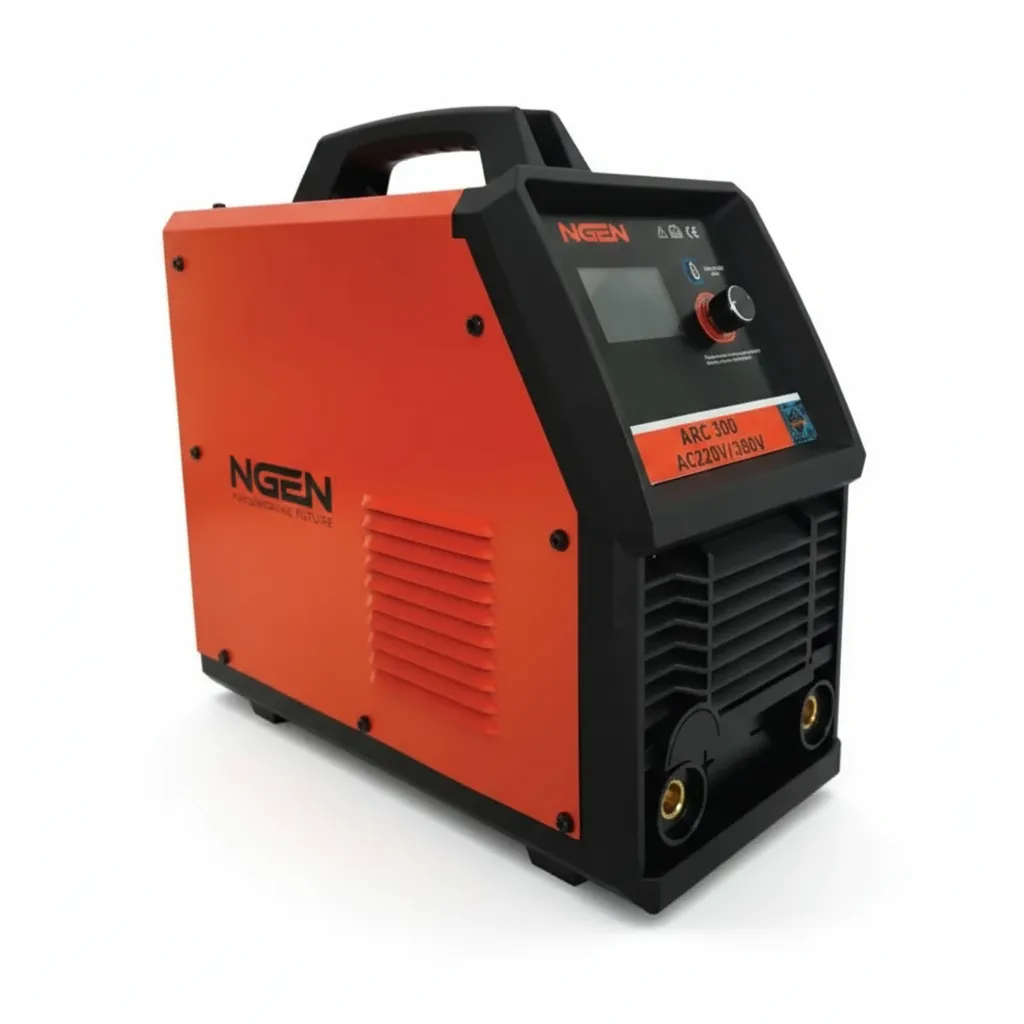

NGEN-ARC300
Product Features
- Pure digital 32-bit MCU control, fast response speed.
- High speed DC fan with low temperature rise of power components.
- LED screen display, multiple adjustable parameters.
- Dual voltage series voltage automatic recognition, safe and reliable.
- Strong resistance to power grid fluctuations, stable welding even when the power grid is unstable.
Enter your email below to instantly receive the official product data sheet. A copy will be sent directly to your inbox, and our team will also be notified of your request.
PRODUCT FUNCTIONS
- Independent adjustment of welding current, arc initiation current, and thrust current.
- Low voltage anti-electric shock VRD function.
- Built-in anti-sticking function.
- Weldable carbon steel, ordinary low-alloy steel, and stainless steel.
- Comprehensive protection against overcurrent and overheating.
PRODUCT ACCESSORIES
- Earthing Clamp 2mtr & Earthing Holder 3mtr.
TeChniCal Parameters and functions
Additional information
| Model | NGEN-ARC300 |
|---|---|
| Voltage(V) | 220/380V |
| Frequency(Hz) | 50-60 |
| No-load Voltage(V) | 67 |
| Current Range(A) | 20-240 |
| Duty Cycle | 35% |
| Welding Rod(mm) | ₵1.6-5.0 |
| Power Factor% | 0.73 |
| Insulation Grade | F |
| Protection Grade | IP21S |
| Weight(kg) | 13 |
| L*W*H) (mm) | 380*210*340 |
| Carton CBM(m³) | 0.06 |
| Anti stick function | ✔ |
| Arc force | ✔ |
| Hot start | ✔ |
| VRD | ✔ |
| Automatic voltage compensation | ✔ |
| Over heat protection | ✔ |
| Under voltage protection | ✔ |
| Over current protection | ✔ |
