Description
PRODUCT FUNCTIONS
- Hot start, anti-stick, and arc force.
PRODUCT ACCESSORIES
- Earthing Clamp 3mtr & Earthing Holder 3mtr.
PRODUCT DESCRIPTION
- Adopting a powerful IGBT tube and nanometer crystal transformer, advanced inverter technology, with undervoltage and overheating protection, automatic undervoltage fluctuation compensation.

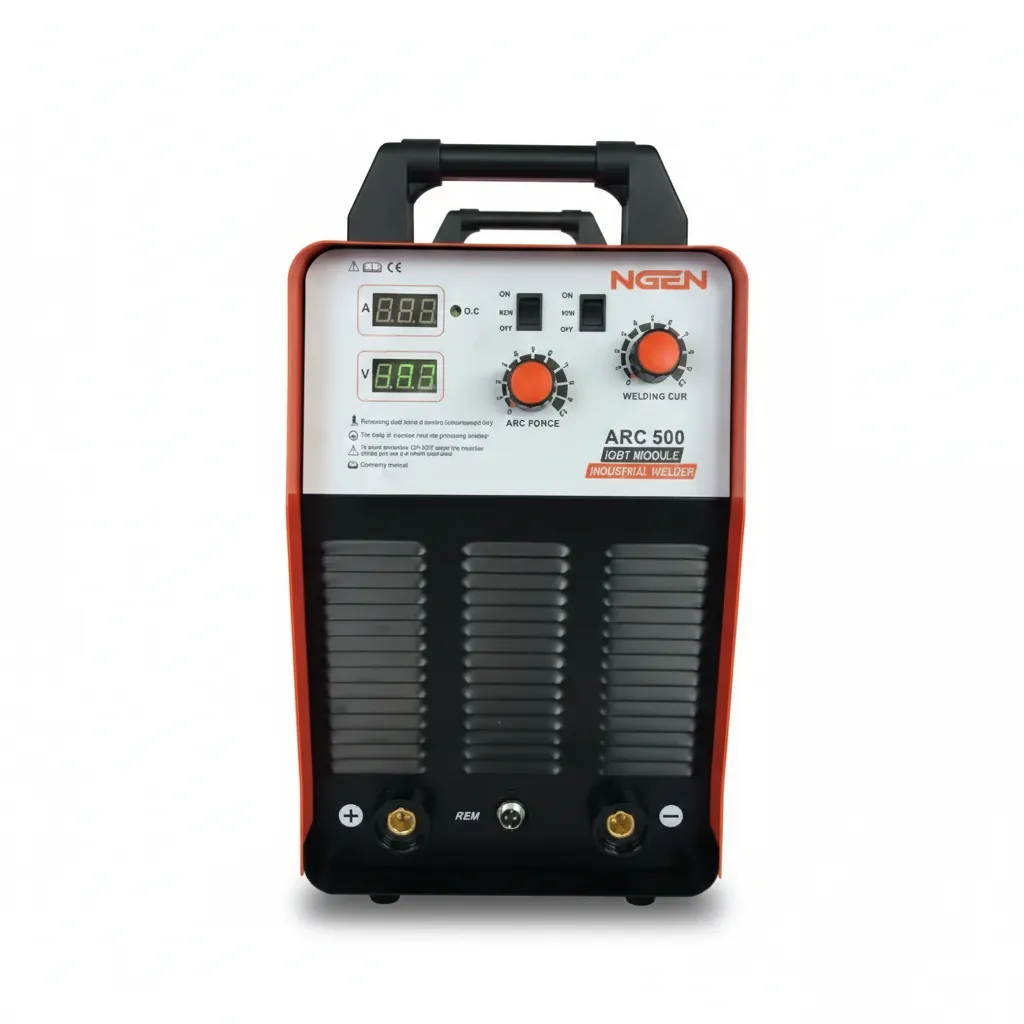

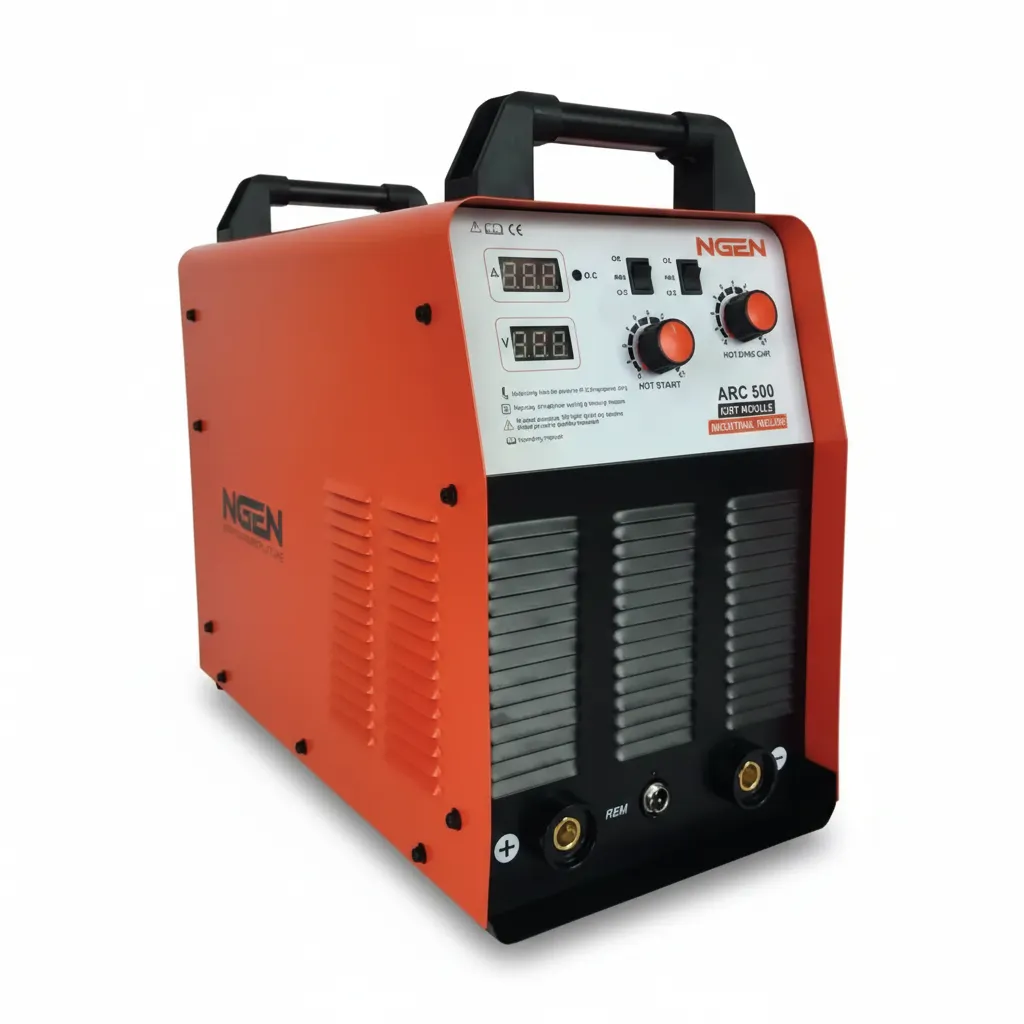

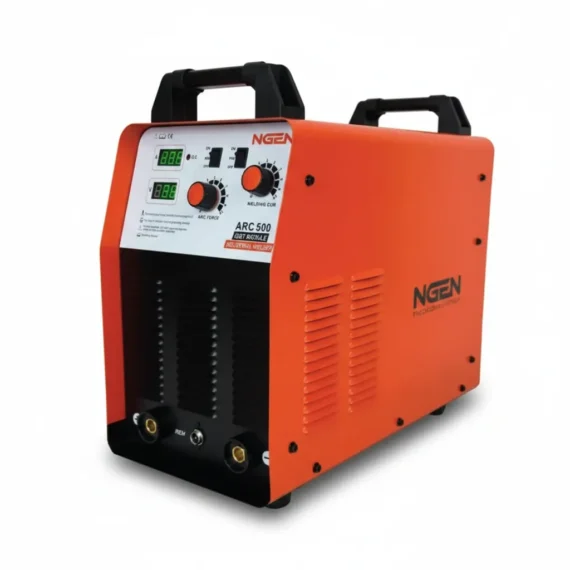

NGEN-ARC500
PRODUCT FEATURES
- Excellent arcing, stable arc, little spatter, and high duty cycle, which can reach 60% at 40°C. The current attenuation of the welding wire lengthened by 100M is not large, and can still meet the needs of high-quality welding.
- Certified to the European Union (EU) CE and China Compulsory Certification (CCC).
Enter your email below to instantly receive the official product data sheet. A copy will be sent directly to your inbox, and our team will also be notified of your request.
PRODUCT FUNCTIONS
- Hot start, anti-stick, and arc force.
PRODUCT ACCESSORIES
- Earthing Clamp 3mtr & Earthing Holder 3mtr.
PRODUCT DESCRIPTION
- Adopting a powerful IGBT tube and nanometer crystal transformer, advanced inverter technology, with undervoltage and overheating protection, automatic undervoltage fluctuation compensation.
TeChniCal Parameters and functions
Additional information
| Model | NGEN-ARC500 |
|---|---|
| Voltage(V) | 380V±15% |
| Frequency(Hz) | 50-60 |
| Input Power(kVA) | 15.7 |
| No-load Voltage(V) | 70 |
| Current Range(A) | 20-360A |
| Duty Cycle | 60% |
| Arc Force Current Range(A) | 0-100A |
| Welding Rod(mm) | ₵1.6-6.0 |
| Power Factor | 85 |
| Housing Protection Grade | IP21S |
| Insulation Grade | F |
| Weight(kg) | 19.5 |
| L*W*H) (mm) | 550*260*480 |
| Carton CBM(m³) | 0.119 |
| Anti-Stick Functions | ✔ |
| Arc Force | ✔ |
| Hot Arcing | ✔ |
| Automatic Voltage Compensation | ✔ |
| Over Heat Protection | ✔ |
| Over Voltage Protection | ✔ |
| Under Voltage Protection | ✔ |
