Description
PRODUCT FUNCTIONS
- Cutting speed fast, incision smooth, bright and clean
- Check gas and gas delay time
- Cut-65P1 has MMA function
PRODUCT ACCESSORIES
- LED Display
- Plasma Torch 4mtr length
- Cable Clamp 3mtr length
PRODUCT DESCRIPTION
- Cutting current, pre-air time, current ramp-up time, post-air time, and arc current are independently adjustable
- Fast arc initiation speed, good cutting and joining effect
- Has 2T/4T function, convenient to use
- Weldable carbon steel, ordinary low-alloy steel, stainless steel
- Comprehensive protection against overcurrent and overheating

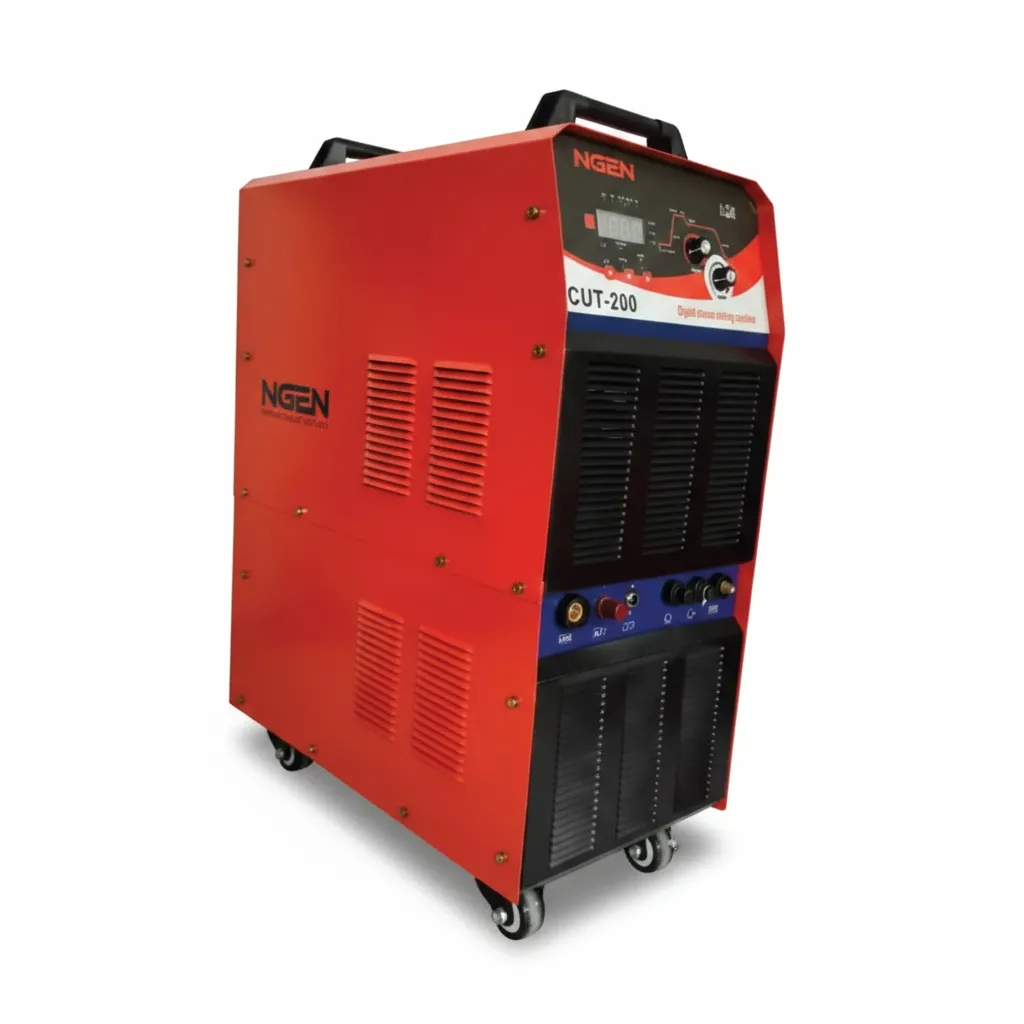

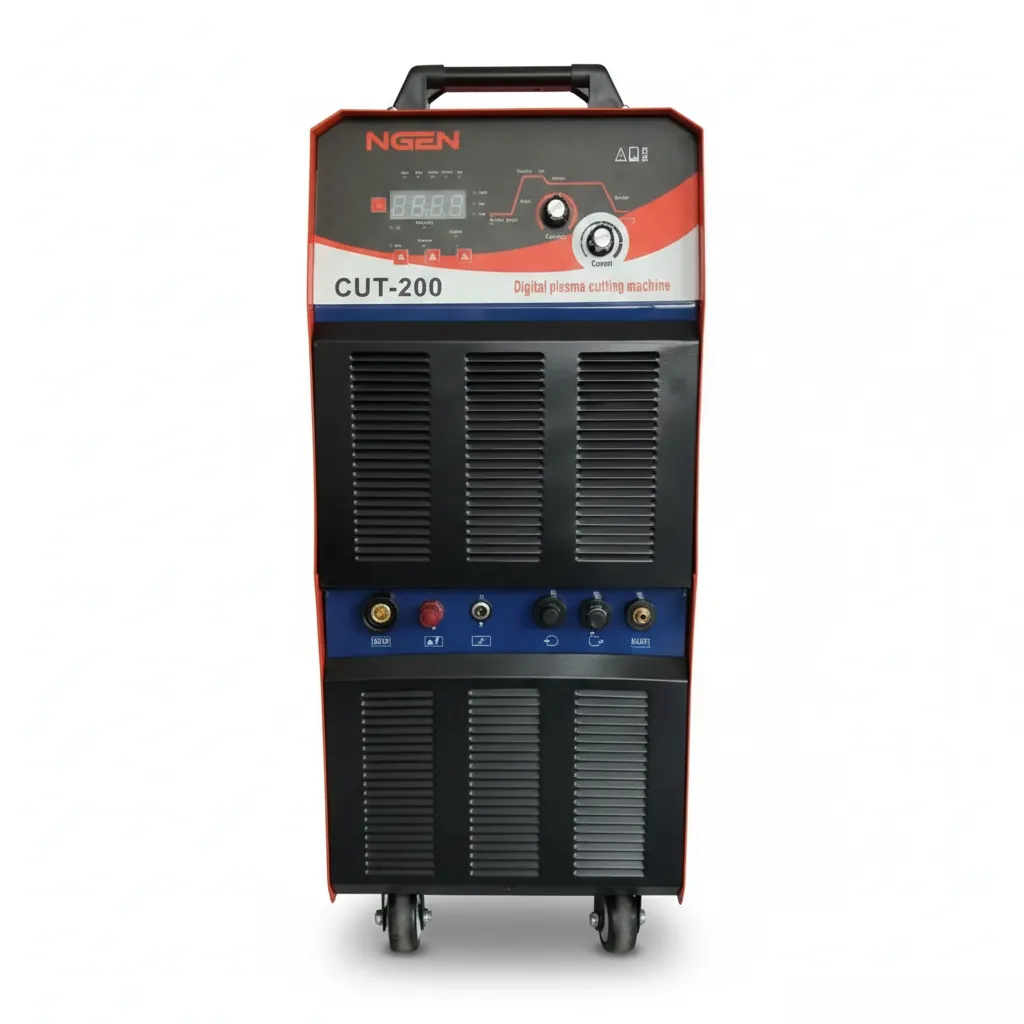

NGEN-CUT200
PRODUCT FEATURES
- High-speed DC fan with low temperature rise of power components
- LED screen display, multiple adjustable parameters
- Strong resistance to power grid fluctuations, stable welding even when the power grid is unstable
- MCU control, fast response speed
Enter your email below to instantly receive the official product data sheet. A copy will be sent directly to your inbox, and our team will also be notified of your request.
PRODUCT FUNCTIONS
- Cutting speed fast, incision smooth, bright and clean
- Check gas and gas delay time
- Cut-65P1 has MMA function
PRODUCT ACCESSORIES
- LED Display
- Plasma Torch 4mtr length
- Cable Clamp 3mtr length
PRODUCT DESCRIPTION
- Cutting current, pre-air time, current ramp-up time, post-air time, and arc current are independently adjustable
- Fast arc initiation speed, good cutting and joining effect
- Has 2T/4T function, convenient to use
- Weldable carbon steel, ordinary low-alloy steel, stainless steel
- Comprehensive protection against overcurrent and overheating
TeChniCal Parameters and functions
Additional information
| Model | CUT200 |
|---|---|
| Voltage(V) | 380V±15% |
| Frequency(Hz) | 50-60 |
| Input Power(KVA) | 40 |
| No-Load Voltage(V) | 300V |
| Current Range(A) | 20~200A |
| Duty Cycle | 80% |
| Arc Strking | HF/Pilot Arc |
| Quality Cutting Thickness | 40 |
| Pierce Thickness | 25 |
| Max Cutting Thickness | 70 |
| Proper Cutting Pressure | 4~6 |
| Power Factor | 0.93 |
| Effciency(%) | 85 |
| Insulation Grade | F |
| Protection Grade | IP21S |
| Weight(Kg) | 70 |
| (L*W*H)(mm) | 670*365*960 |
| Carton CBM(m³) | 0.304 |
| Pre Gas/Time | ✔ |
| Post Gas/Time | ✔ |
| Up Slope/Time | ✔ |
| Pierce Cut | ✔ |
| Down Slope/Time | ✔ |
| Un-Touch HF Pilot arc | ✔ |
| Check gas Function | ✔ |
| 2T/4T | ✔ |
| Automativ Voltage Compensation | ✔ |
| Thermal Protection | ✔ |
| Low Voltage Protection | ✔ |
| Cutting Torch | TK-260-7M |
| Cutting Speed | Steel 30mm -700mm / min |
