Description
PRODUCT FUNCTIONS
- MIG/MAG/MMA option, Lift TIG option, thermal protection, over/under voltage protection, over-heating protection.
- Specialized in aluminium welding.
- Post-welding wire-end droplet elimination function.
- Unique welding dynamics control circuit.
- A prompt feedback circuit that provides a stable arc can keep the electric arc adjusted responsively as wire stick-out varies.
PRODUCT ACCESSORIES
- MIG Torch 3mtr length.
- CO2 Regulator.
- Earthing Clamp 3mtr & Earthing Holder 3mtr x 50mm² cable.
- 4-drive roller with closed wire feeder.
PRODUCT DESCRIPTION
- Integrated design, especially suitable for rapid spot welding of thin plates, such as furniture manufacturing, sheet metal, electric bicycle industries, etc.
“`
“`

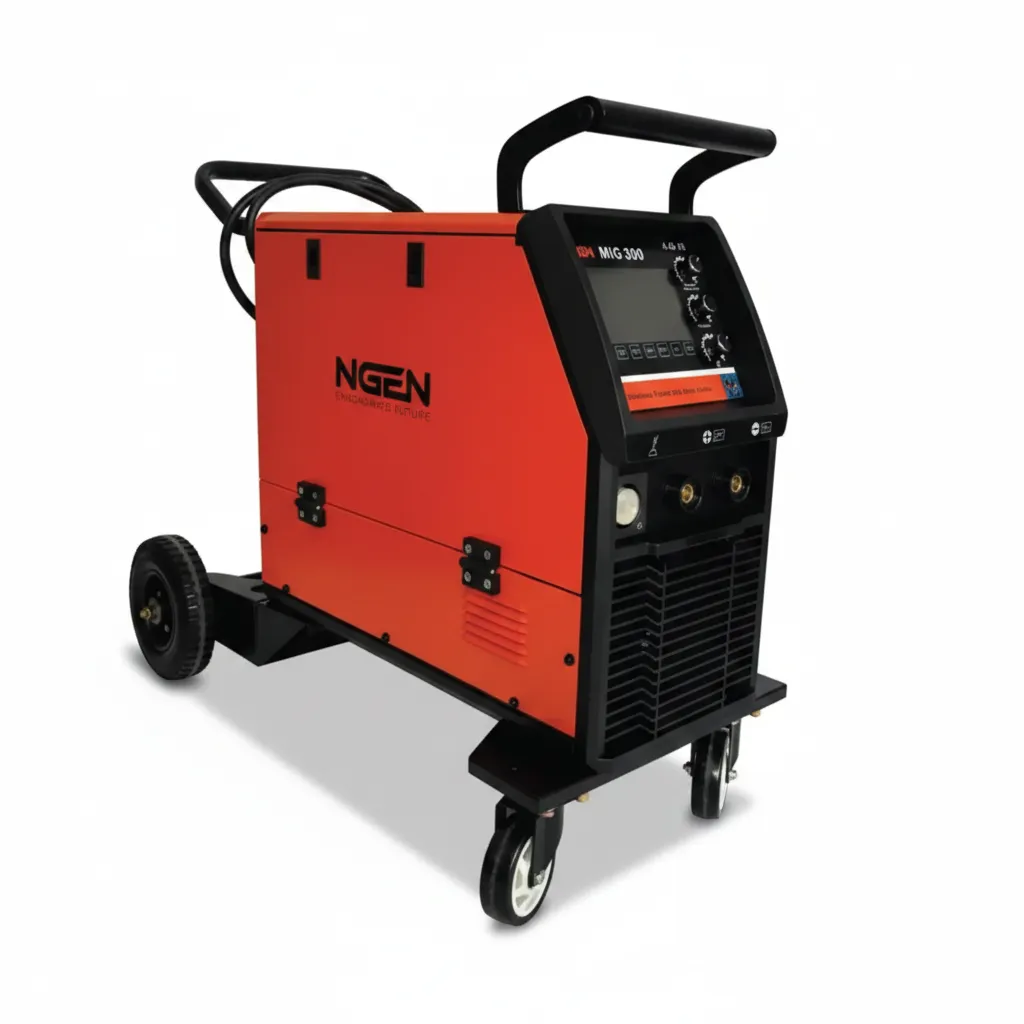

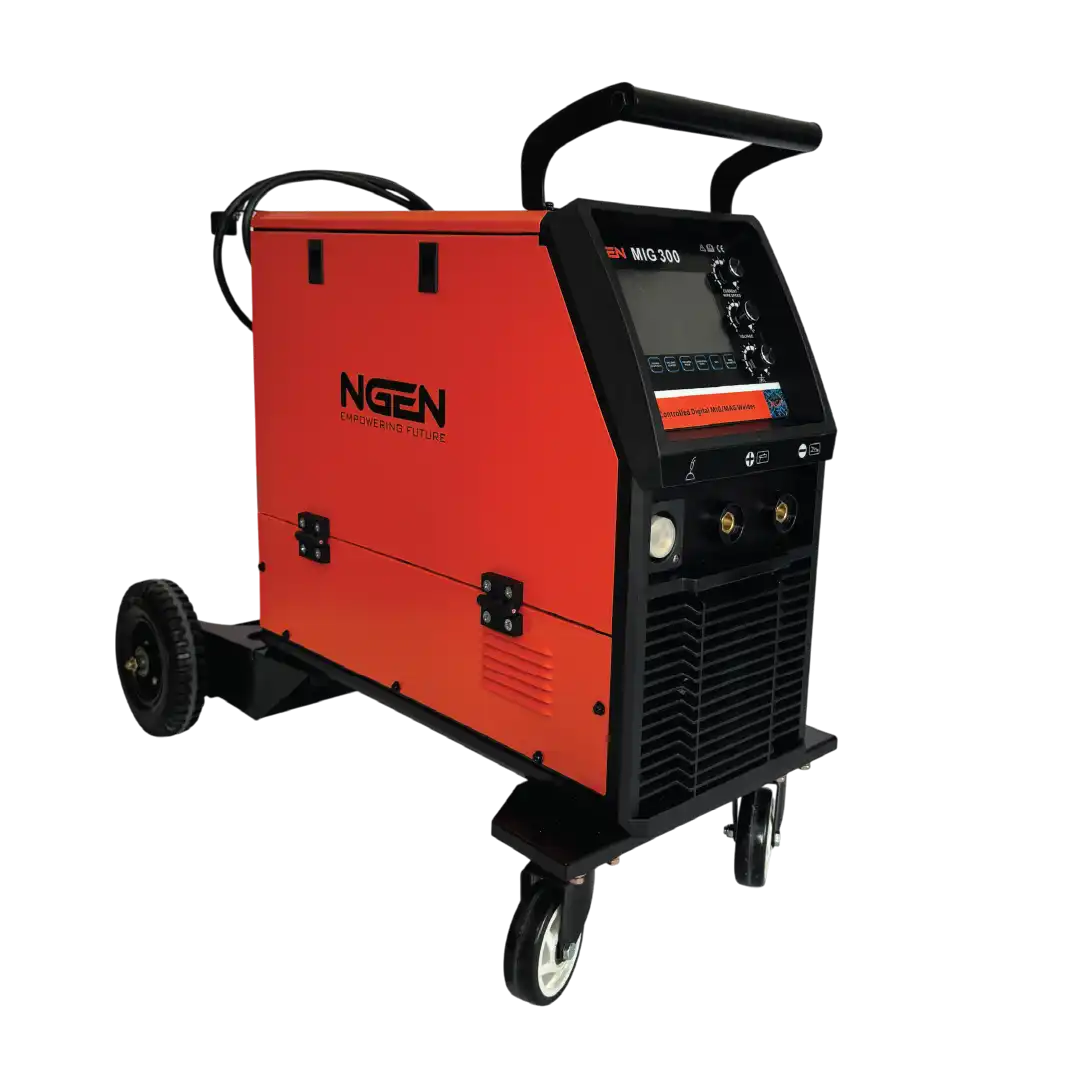

NGEN-MIG300
Product Features
- IGBT inverter technology, fast dynamic response.
- Smooth and full spot welding joints, fast spot welding speed.
- Compact design with 15kg size inbuilt wire spool accepted.
- Adjustable inductance for controlling arc to optimize weld performance.
- Digital display for current and voltage.
- T serial with Trolley Design, Cylinder Tray.
Enter your email below to instantly receive the official product data sheet. A copy will be sent directly to your inbox, and our team will also be notified of your request.
PRODUCT FUNCTIONS
- MIG/MAG/MMA option, Lift TIG option, thermal protection, over/under voltage protection, over-heating protection.
- Specialized in aluminium welding.
- Post-welding wire-end droplet elimination function.
- Unique welding dynamics control circuit.
- A prompt feedback circuit that provides a stable arc can keep the electric arc adjusted responsively as wire stick-out varies.
PRODUCT ACCESSORIES
- MIG Torch 3mtr length.
- CO2 Regulator.
- Earthing Clamp 3mtr & Earthing Holder 3mtr x 50mm² cable.
- 4-drive roller with closed wire feeder.
PRODUCT DESCRIPTION
- Integrated design, especially suitable for rapid spot welding of thin plates, such as furniture manufacturing, sheet metal, electric bicycle industries, etc.
```
```
TeChniCal Parameters and functions
Additional information
| Model | NGEN-MIG300 |
|---|---|
| Input Voltage(V) | 380V +/-15% |
| Input Frequency(Hz) | 50-60 |
| Input Power(KVA) | 9.4 |
| Max Input Current(A) | 14.3 |
| Max Effective Input Current(A) | 11.1 |
| No-Load Voltage (V) | 52 |
| Output Current(A) | 50-270 |
| Output Voltage(V) | 27.5 |
| Duty Cycle(%) | 60% on 50* Temperature |
| Efficiency(%) | 85 |
| Power Factor | 0.93 |
| Insulation Grade | F |
| Housing Protective Grade | IP21S |
| Wire Feeder | Compact |
| Wire Spool Dia.(mm) | 2Lb to 44Lb (4.5kg to 15/20kg Roll) |
| Wire Dia.(mm) | 0.8/1.0/1.2 |
| Plate Thickness(mm) | 0.6 |
| Dimensions(L*W*H)(mm) | 580*272*470 |
| Carton CBM(m³) | 0.117 |
| MIG/MAG | ✔ |
| MMA | ✔ |
| Slow-Feeding | ✔ |
| Burn Back Time | ✔ |
| Inching | ✔ |
| Inductance Adjustable | ✔ |
| Automatic Voltage Compensation | ✔ |
| Thermal Protection | ✔ |
| Over Loading Protection | ✔ |
| Low Voltage Protection | ✔ |
| MIG Torch | 24KD/3Mtr Length |
| Earth Cable+Co2 Regulator | 3Mtr + AC36V |
| Wire Feeder Type | 4 Wheel Drive Roller |
