Description
PRODUCT FUNCTIONS
- A prompt feedback circuit that provides for a stable arc can keep the electric arc adjusted responsively as wire stick-out varies.
- Combined with computer technology, it adopts high-speed dual-processor DSP (Digital Sign Processor), highly integrated in 32-bit MCU.
- The PM-5000DP belt can store 10 sets of custom welding data.
- Can weld aluminum and aluminum alloy, copper, stainless steel, alloy steel, carbon steel.
PRODUCT ACCESSORIES
- MIG Torch 3mtr length
- CO2 Regulator
- Earth Clamp & Holder
- Closed Wire Feeder
- Water Tank & Trolley
PRODUCT DESCRIPTION

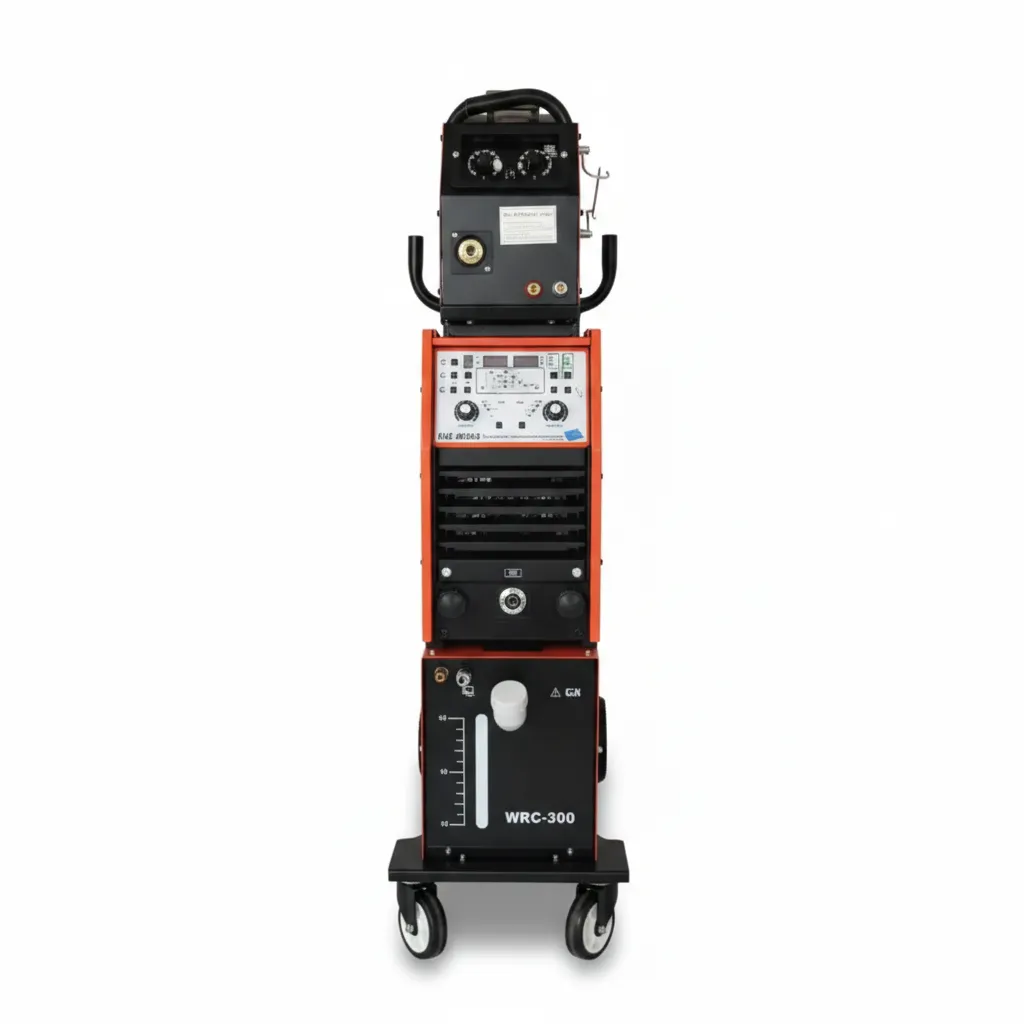

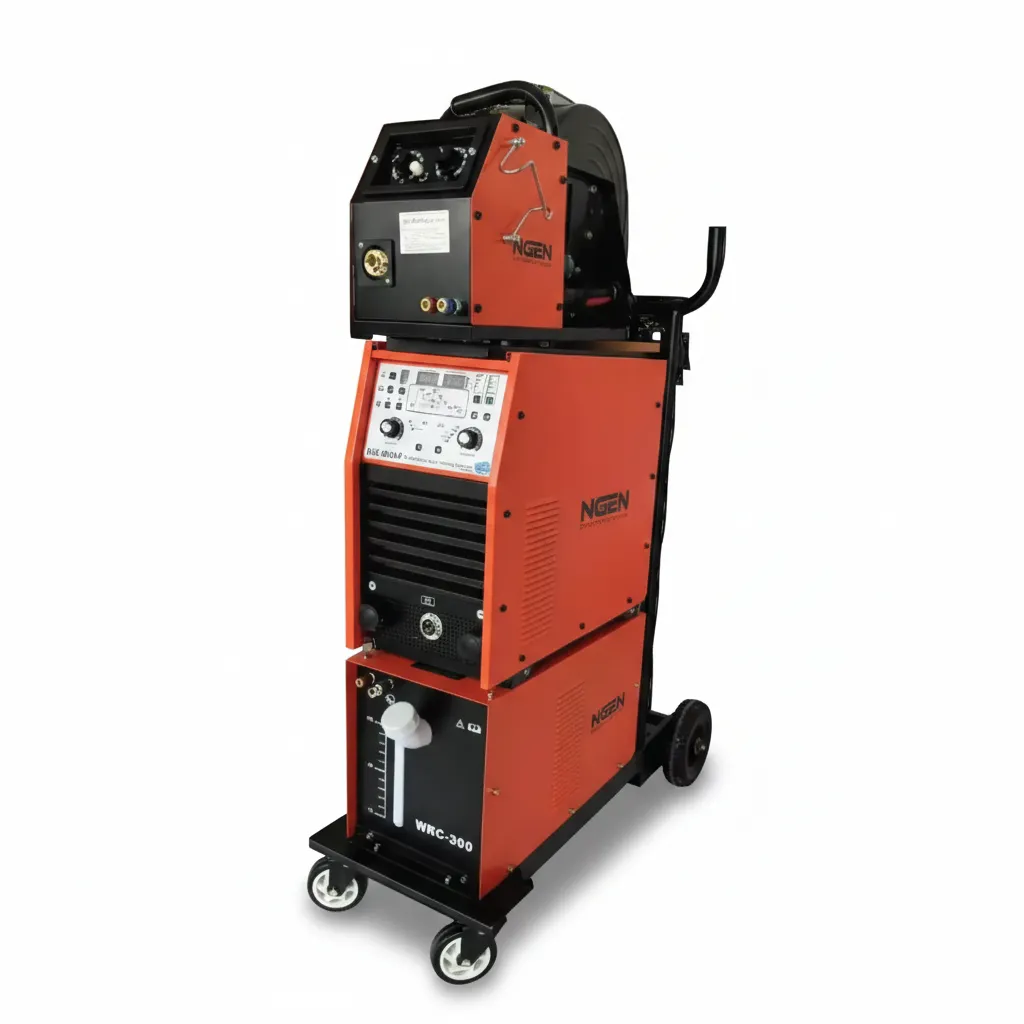

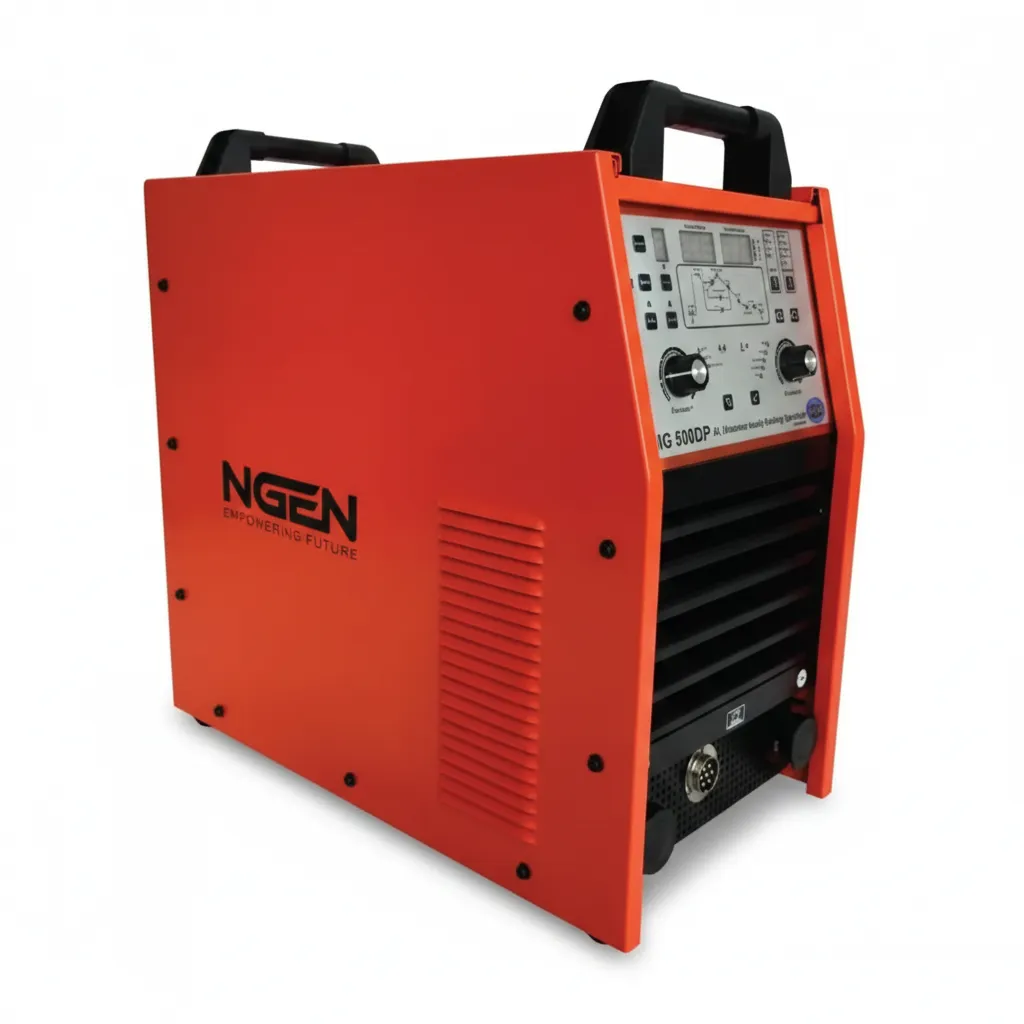

- Advanced PM-5000DP welding machine with double pulse, single pulse, and CO₂ welding modes, featuring precise DSP control, synergic welding, and 4-wheel-drive wire feeding. Suitable for welding aluminum, copper, stainless steel, alloy steel, and carbon steel, with versatile programs for manual, automated, and robotic welding applications.
NGEN-MIG500DP-W/T100
Product Features
The PM series models integrate an expert database system and have very good welding performance. The PM series can weld carbon steel, stainless steel, alloy steel, aluminum, aluminum alloy, copper and other metals.
Enter your email below to instantly receive the official product data sheet. A copy will be sent directly to your inbox, and our team will also be notified of your request.
PRODUCT FUNCTIONS
- A prompt feedback circuit that provides for a stable arc can keep the electric arc adjusted responsively as wire stick-out varies.
- Combined with computer technology, it adopts high-speed dual-processor DSP (Digital Sign Processor), highly integrated in 32-bit MCU.
- The PM-5000DP belt can store 10 sets of custom welding data.
- Can weld aluminum and aluminum alloy, copper, stainless steel, alloy steel, carbon steel.
PRODUCT ACCESSORIES
- MIG Torch 3mtr length
- CO2 Regulator
- Earth Clamp & Holder
- Closed Wire Feeder
- Water Tank & Trolley
PRODUCT DESCRIPTION
- Advanced PM-5000DP welding machine with double pulse, single pulse, and CO₂ welding modes, featuring precise DSP control, synergic welding, and 4-wheel-drive wire feeding. Suitable for welding aluminum, copper, stainless steel, alloy steel, and carbon steel, with versatile programs for manual, automated, and robotic welding applications.
TeChniCal Parameters and functions
Additional information
| Model | MIG500DP-W/T100 |
|---|---|
| Rated Input Voltage/Frequency | 380V±15% 50/60Hz |
| Rated Input Capacity(KVA) | 25 |
| Rated Load Duration(%) | 60 |
| Output No-Load Voltage(V) | 70 |
| Output Current Range(A) | 20~500 |
| Output Voltage Range(V) | 14~50 |
| Gas Flow Rate(L/min) | 10~20 |
| Torch Cooling Method | Water Cooling / Air Cooling |
| Enclosure Rating | IP21S |
| Insulation Class | F |
| Dimensions(L*W*H)(mm) | 590*280*565 |
| Weight(Kg) | 38 |
| Carton CBM(m³) | 0.468 (Including Wire Feeder, Wrc 300, Trolley Machine) |
