Industrial welding operations generate extreme heat, especially during high-amperage MIG, TIG, and Plasma welding. Without proper cooling, welding torches can overheat quickly, leading to damaged consumables, inconsistent weld quality, unexpected downtime, and higher maintenance costs.
This is where a Water Cooler becomes essential. A water cooling unit continuously circulates coolant through the welding torch to absorb excess heat, keeping equipment at the ideal operating temperature.
Compared to air-cooled systems, water cooling offers superior thermal efficiency, allowing welders to operate for longer periods while maintaining stable arc performance.
In this guide, you’ll learn how a water cooling unit works, its benefits, major components, applications, and how to choose the right system for your welding requirements.
What Is a Water Cooling Unit?

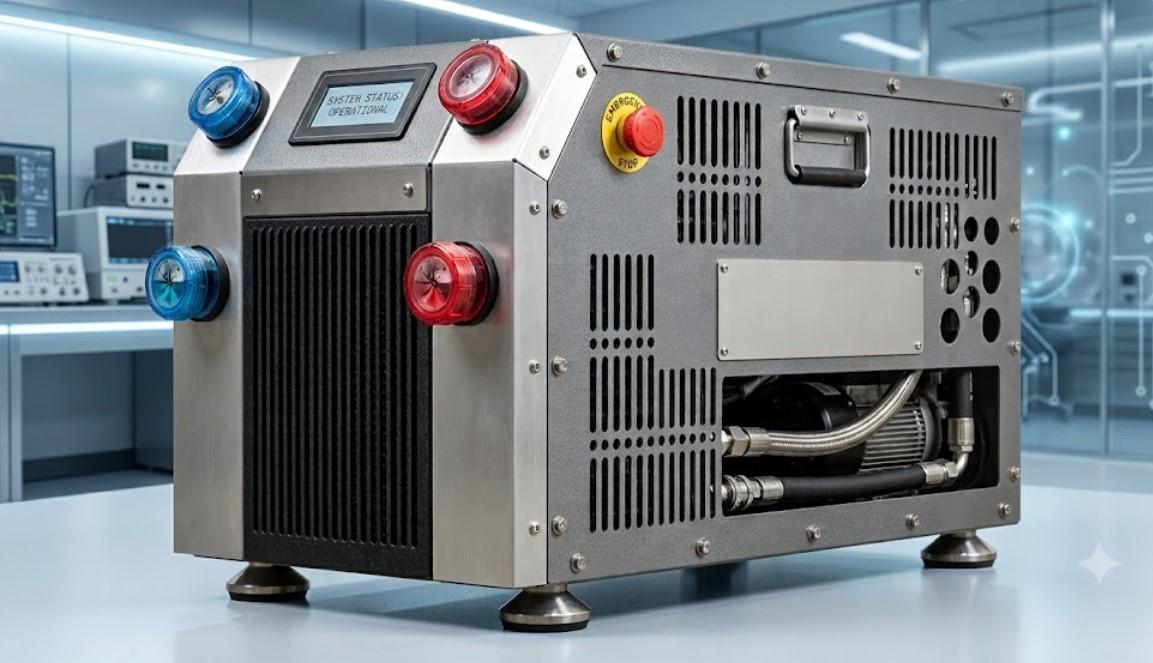

A Water Cooling Unit is an industrial cooling system designed to remove heat from welding torches by circulating coolant through a closed-loop system.
Instead of relying only on airflow, the unit pumps coolant through the welding torch, where heat is absorbed before being transferred back into the cooling tank or radiator.
This process prevents excessive temperatures that could damage:
- Welding torches
- Power cables
- Consumables
- Connectors
- Internal torch components
Water cooling units are commonly used with:
- TIG Welding
- MIG Welding
- Plasma Cutting
- Robotic Welding
- Automated Welding Systems
How Does a Water Cooling Unit Work?
The cooling process follows a continuous cycle.
1. Coolant Circulation
A high-performance pump pushes coolant from the reservoir toward the welding torch.
2. Heat Absorption
As welding generates heat, the coolant absorbs thermal energy from the torch body and internal components.
3. Heat Dissipation
The heated coolant returns to the cooling unit where a radiator or heat exchanger releases the accumulated heat.
4. Continuous Cooling
The cooled liquid is pumped back through the system, maintaining a stable operating temperature throughout the welding process.
This closed-loop circulation ensures consistent cooling even during extended welding operations.
Main Components of a Water Cooling Unit
A reliable welding water cooling unit consists of several essential components.
Coolant Tank
Stores the cooling liquid and ensures a continuous coolant supply.
High-Performance Pump
Circulates coolant through the entire cooling circuit.
Radiator
Removes heat from the returning coolant before recirculation.
Cooling Fan
Improves radiator efficiency by increasing airflow.
Quick Connectors
Allow fast installation and removal of welding torches.
Temperature Sensors
Monitor coolant temperature to prevent overheating.
Flow Alarm
Alerts operators if coolant flow stops or becomes insufficient.
Why Use a Water Cooling Unit for Welding?
Prevents Torch Overheating
Continuous welding creates significant heat.
A water cooling unit prevents excessive temperatures that can permanently damage expensive welding torches.
Extends Consumable Life
Lower operating temperatures reduce wear on:
- Contact tips
- Nozzles
- Diffusers
- Electrodes
This reduces replacement costs.
Increases Duty Cycle
Air-cooled torches often require cooling breaks.
Water-cooled torches can operate much longer without interruption, increasing productivity.
Improves Arc Stability
Stable temperatures help maintain:
- Consistent arc characteristics
- Better penetration
- Improved weld quality
- Reduced spatter
Lower Maintenance Costs
Keeping equipment cool reduces stress on internal components, resulting in fewer repairs and less downtime.
Applications of Water Cooling Units
Water cooling systems are widely used across numerous industries.
Heavy Fabrication
Large structural steel projects require continuous welding where overheating can reduce productivity.
Automotive Manufacturing
Automated robotic welding systems rely on water cooling for consistent operation.
Shipbuilding
Long-duration welding jobs make water cooling essential for maintaining equipment performance.
Aerospace Industry
Precision welding requires stable temperatures to achieve high-quality welds.
Oil & Gas
Pipeline fabrication often involves high-amperage welding that benefits from continuous cooling.
Metal Fabrication Workshops
Professional fabrication shops use water cooling to increase equipment lifespan and production efficiency.
Water Cooling vs Air Cooling
| Feature | Water Cooling | Air Cooling |
| Heat Removal | Excellent | Moderate |
| Duty Cycle | High | Limited |
| Torch Temperature | Low | Higher |
| Noise | Lower | Higher |
| Continuous Operation | Excellent | Limited |
| Consumable Life | Longer | Shorter |
| Initial Cost | Higher | Lower |
| Maintenance | Moderate | Low |
For industrial applications involving continuous welding, water cooling provides significantly better performance.
How to Choose the Right Water Cooling Unit
When selecting a water cooling unit, consider the following factors.
Cooling Capacity
Ensure the unit can handle your welding machine’s amperage and duty cycle.
Pump Performance
Choose a unit with a reliable pump capable of maintaining consistent coolant flow.
Tank Capacity
Larger tanks provide improved cooling for extended welding sessions.
Safety Features
Look for:
- Flow alarms
- Temperature protection
- Low coolant indicators
- Automatic shutdown protection
Compatibility
Verify compatibility with your:
- MIG Torch
- TIG Torch
- Plasma Torch
Maintenance Requirements
Choose systems with easy coolant replacement and accessible filters.
Maintenance Tips for Water Cooling Units
Regular maintenance helps maximise system performance.
- Check coolant levels before operation.
- Replace coolant according to manufacturer recommendations.
- Inspect hoses for leaks.
- Clean radiator fins regularly.
- Ensure adequate airflow around the cooling unit.
- Monitor pump performance.
- Replace damaged connectors immediately.
Routine maintenance reduces breakdowns and extends equipment life.
Common Signs Your Water Cooling Unit Needs Service
Watch for these warning signs:
- Torch becoming unusually hot
- Reduced coolant flow
- Pump noise
- Coolant leakage
- High temperature alarms
- Inconsistent welding performance
- Frequent equipment shutdowns
Ignoring these symptoms can result in costly repairs.
Why Choose NGEN Water Cooling Units?
NGEN Water Cooling Units are engineered for demanding industrial welding environments.
Key features include:
- Efficient closed-loop cooling system
- High-performance coolant pump
- Reliable continuous circulation
- Enhanced torch protection
- Increased welding duty cycle
- Stable arc performance
- Durable industrial construction
- Quick hose connections
- Safety flow and temperature monitoring
- Suitable for MIG, TIG, and Plasma welding applications
Whether you’re operating a fabrication workshop or a fully automated production line, NGEN Water Cooling Units help maximise productivity while protecting your welding investment.
Conclusion
A Water Cooling Unit is more than just a cooling accessory, it is a critical component for maintaining welding efficiency, improving weld quality, and extending equipment lifespan.
By continuously removing heat from the welding torch, these systems enable higher duty cycles, reduce maintenance costs, and improve overall productivity. Industries that rely on continuous MIG, TIG, or Plasma welding can significantly benefit from investing in a high-quality water cooling solution.
If you’re looking for reliable industrial cooling performance, choosing the right water cooling unit ensures safer operation, consistent results, and long-term cost savings.
Looking for a Reliable Water Cooling Unit?
NGEN supplies high-performance water cooling units for MIG, TIG, and Plasma welding applications. Contact us today for expert guidance, a competitive quote, and the right cooling solution to maximise productivity and reduce downtime.
